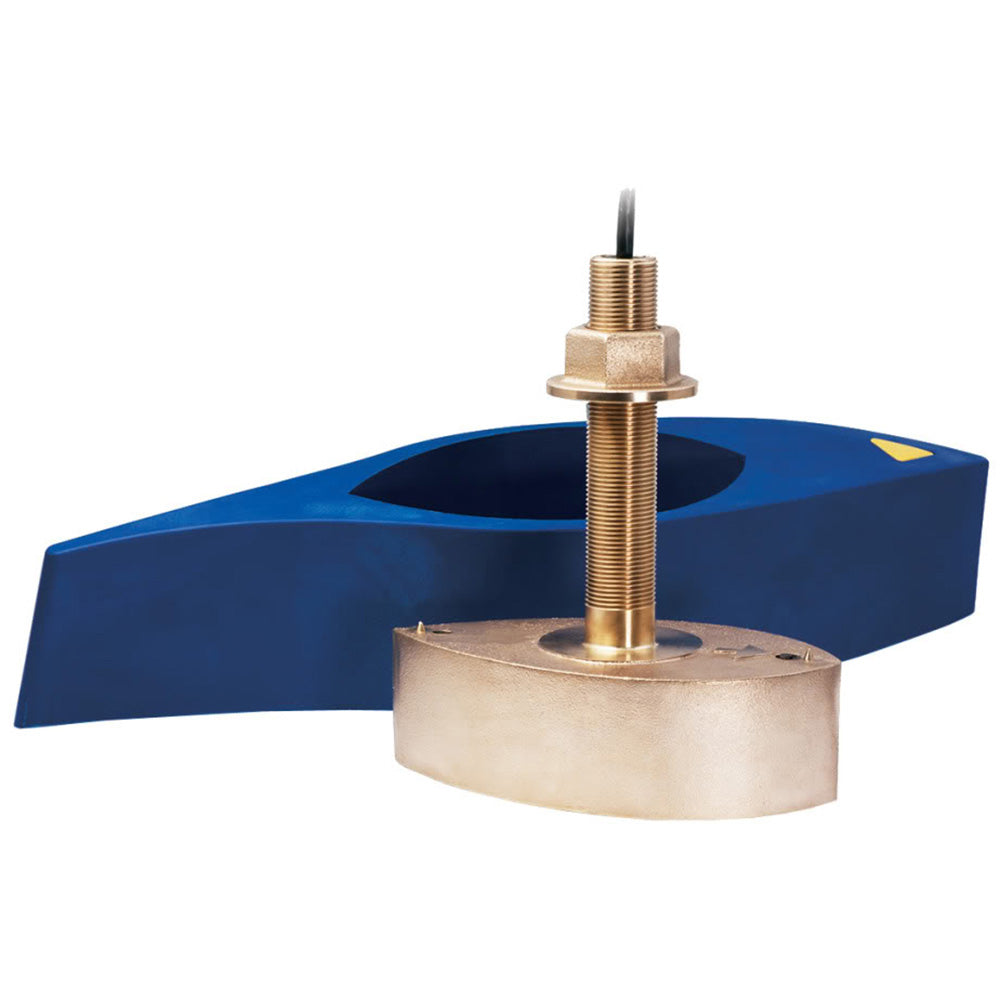

Airmar B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth & Temp

B265LM Bronze Thru-Hull - Chirp-Ready - No Connector - Depth & Temp

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included high-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Features:

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep to mid-depth performance
• Low frequency: 42 to 65 kHz
• 25° to 16° beamwidth
• Maximum depth of 914 m (3000')
• Medium frequency: 85 to 135 kHz
• 16° to 11° beamwidth
• Maximum depth of 457 m (1500')
• 73 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz, plus everything else in the bandwidths
• Bronze housing with High-performance Fairing for optimal high-speed performance
• Also available as transom (TM265LM), pocket (PM265LM), cavity/welded-tank (CM265LM), and in-hull (M265LM) mounts
• Patented Xducer ID® technology

Specifications:

• Power Rating: 1 kW
• Max Deadrise Angle: 20°
• Housing: Bronze
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: 8 m (25') and above
• Usable Shaft Length: 121 mm (4.75")
• Mounting Style: Thru-Hull with Fairing
• Acoustic Window: Urethane
• Common Use: Fishing, Commercial Fishing
• Low Frequency: 42-65 kHz
• Low Frequency Beamwidth: 25°-16°
• Max Deadrise: Up to 20° with fairing
• Max Depth: Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')
• Medium Frequency: 85-135 kHz
• Medium Frequency Beamwidth: 16°-11°
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Dual-Band
• Tilted Element: No
• Weight: 7.3 kg (16 lbs.)
