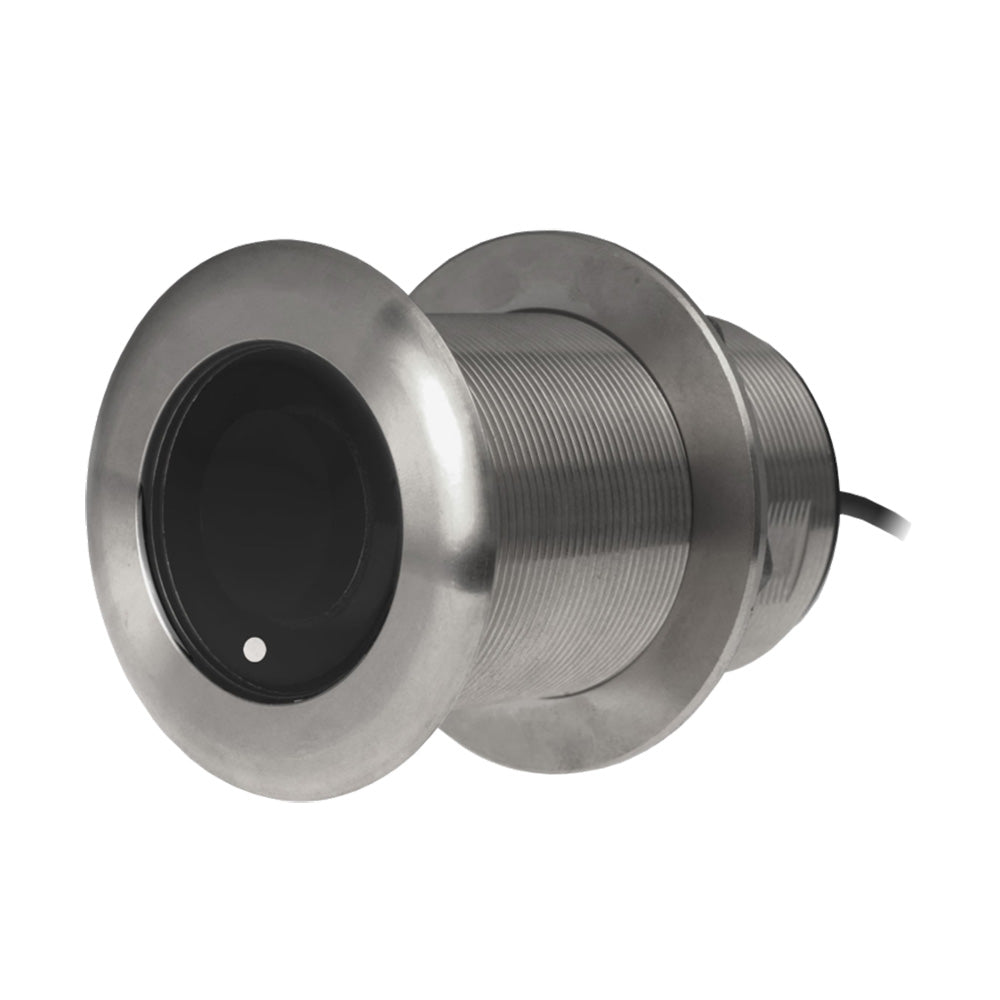

SS75 High Chirp 12 Degree Bronze Thru-Hull xSonic Transducer

Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats, such as center consoles. The high-frequency band has a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. The SS75H transducer, operating at 130 to 210 kHz, delivers up to 80 kHz of total bandwidth in just one installation for outstanding bottom detail and fish-target resolution.

This Tilted Element™ transducer has the element fixed at a 12-degree angle within the housing. Because the transducer is installed almost flush with the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

Features:

  • Depth and fast-response water-temperature sensing
  • 600 W of power with a maximum depth of 214 m (700')
  • High frequency (130 to 210 kHz)
  • 15- 9 degree beamwidth
  • High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
  • Low-profile, thru-hull housing provides good display resolution at speed when installed properly
  • Recommended for stepped, planning, or displacement hull
  • Stainless steel housing for use in all hull materials
  • Patented Xducer ID® technology

Specifications:

  • Brand: Airmar Technology
  • Acoustic Window: Urethane
  • Cable-Length: 10 m (33')
  • Common Use: Fishing, Commercial Fishing
  • Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin
  • Country of Origin: USA
  • Cross Reference: 000-13912-001
  • Deadrise Range: 8-15 degrees
  • Display Connector: 9N
  • Frequency Band: High
  • Functions: Depth, Temperature
  • High Frequency: 130-210 kHz
  • High Frequency Beamwidth: 15-9 degrees
  • Hole Size: Fiberglass or wood hull—70 mm or 2-13/16", Metal hull—79 mm or 3-1/8"
  • Hull Material: Compatible w/ all hull materials
  • Material: Stainless Steel
  • Max Deadrise: Up to 24 degrees
  • Max Deadrise Angle: 24 degrees
  • Max Depth: 214 m (700')
  • Max Vessel LOA: Up to 8 m (26')
  • Mix and Match Series: 12-Pin Chirp
  • Mounting Style: Tilted Element Thru-Hull
  • Power Rating: 600 W
  • Retractable housing: No
  • Sensor Connector: MMC
  • Single or Dual Frequency: CHIRP-Ready Single-Band
  • Tilt Angle: 12 degrees
  • Tilted Element: Yes
  • Weight: 1.4 kg (3 lbs.)
