ARCO Marine 4032ARCO Marine Zeus A275L Transit Alternator w/Terminal Block
ARCO Marine 4032ARCO Marine Zeus A275L Transit Alternator w/Terminal Block

ARCO Marine 4032ARCO Marine Zeus A275L Transit Alternator w/Terminal Block

Manufacturer: ARCO
MPN: 4032
Availability: Out Of Stock
$986.70
$1,022.00
$986.70
Subtotal: $986.70
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
ARCO Marine 4032ARCO Marine Zeus A275L Transit Alternator w/Terminal Block

ARCO

ARCO Marine 4032ARCO Marine Zeus A275L Transit Alternator w/Terminal Block

$986.70
ARCO Marine 4032ARCO Marine Zeus A275L Transit Alternator w/Terminal Block

ARCO

ARCO Marine 4032ARCO Marine Zeus A275L Transit Alternator w/Terminal Block

$986.70
Description
Description
x

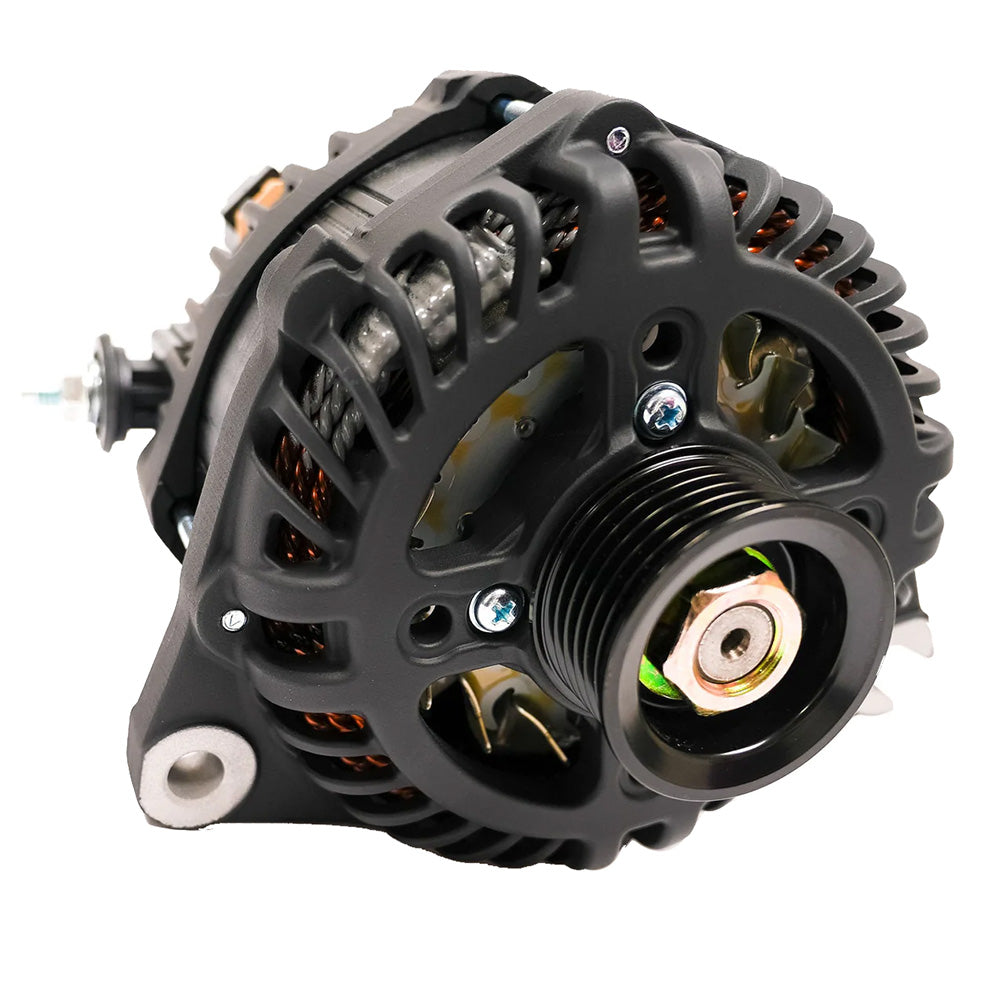

Zeus A275L Transit Alternator with Terminal Block

High Output / High Amperage Alternator: The Highest Power Output in Its Class.

Features:

  • Replace your noisy generator!
  • Engineered for high energy production.
  • Suitable for marine, RV, military, and commercial applications.
  • Rapidly charges large battery banks.
  • Coolest operating temperatures for increased performance:
  • Heat-shedding coatings
  • Rectifier located on housing exterior
  • Dual cooling fans
  • OEM components
  • Optimized for performance at idle speeds
  • Reduces the need for a generator by creating additional power with your engine
  • Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output
  • For maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator Regulator
  • Mercedes requires the use of a clutch pulley on secondary alternators used on all Sprinter vans. For Mercedes Sprinter, please use our N62 with Clutch Pulley here
  • SAE J1171 Certified
  • Models are available with internal/external voltage regulators
  • Proudly made in the U.S.A.

Specifications:

  • Voltage: 12V
  • Field Type: P
  • Rotor Poles: 16
  • Stator Size: 138mm
  • Frame Size: Large
  • Weight: 14.9 lbs / 6.7 kg
  • Regulation: Internal/External (IE) or External Only (EX)
  • Output Voltage: 14.1V (default)
  • Finish: (Black) Cerakote or E-coating
  • Cut-In RPM: 1,061 Alternator RPM
  • Maximum Alt RPM: 19,000
  • Battery Post: M8 Thread Post, Side Mount
  • Standard Pulley: 49K6 (6-groove, 49mm)
  • Pulley Mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5
  • Pulley Hardware: M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
  • Diodes: 6 positive, 6 negative, 50A Rated, Avalanche
  • Max Output (Cold, 9,000 RPM): 311 Amps
  • Sustained Cruising Output (Hot, 6,000 RPM): 227 Amps
  • Sustained Idle Output (Hot, 3,000 RPM): 198 Amps
  • Max Continuous Operating Temperature: 110°C / 230°F

Mounting Application:

  • Replaces Ford Transit alternators for 3.5L & 3.7L Gas engines 2015-2022
