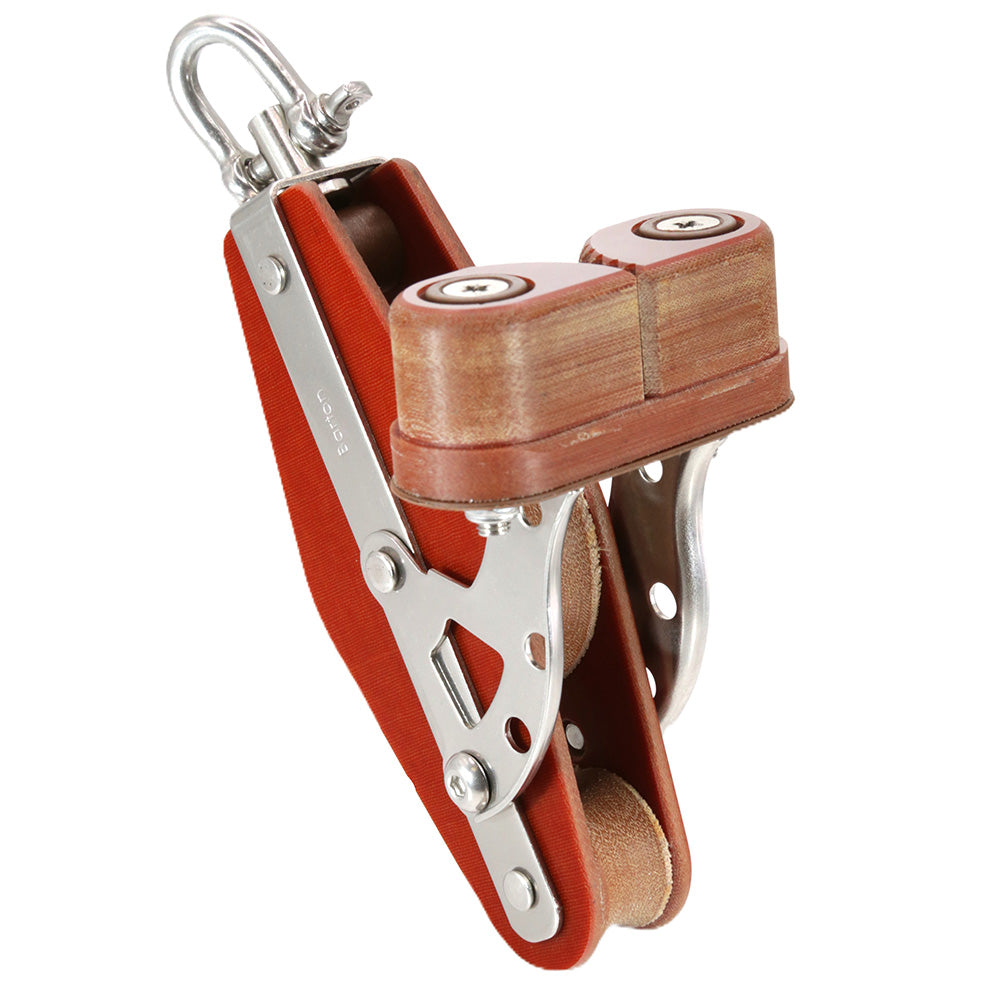

TUPHblox Fiddle Block withSwivel & Cam - 20mm (25/32″) Size 0

The TBC TUPHblox Fiddle Block with Swivel & Cam can be used with a shackle or rope. It is available with a becket if required. It is suitable for rope up to 8mm (5/16″). TUPHblox are made from a phenolic resin laminate with cotton reinforcement commonly known as Tufnol. It is strong, durable, and lightweight. All blocks are made with stainless steel (316) bindings and run on brass bearings.

Tufnol is a multiple-layer, fabric-laminated, resin-bonded construction that is heated and then compressed to the required thickness. This creates a range of products that meet the rigorous performance and environmental standards required on sailing yachts, commercial applications and industrial users. It is non-conductive so ideal for industrial users such as Hot Air Balloons and explosive environments. The TUPHblox range incorporates stainless steel and brass components, making them light and strong. Barton returned to manufacturing Tufnol blocks in 2023 and to its retro roots to support the requirements of classic heritage vessels worldwide, along with commercial and industrial users. The TUPHblox range is constructed with 316 marine-grade stainless steel components and brass bearings. The result is a durable line of blocks and gear that provide high rolling loads, greater strength and durability, UV and weather resistance that will last the lifetime of the product. Although specific wire blocks are available in the range even the rope variants work with wire ropes too.

Specifications:

  • Max rope diameter: 8mm ( 5 /16")
  • Sheave Size: 20mm (25/32")
  • Break load: 550kg (1210 lbs)
  • SWL: 275kg (606lbs)
  • Number of Sheaves: Single
  • Block Type: Fiddle + Swivel + Cam
