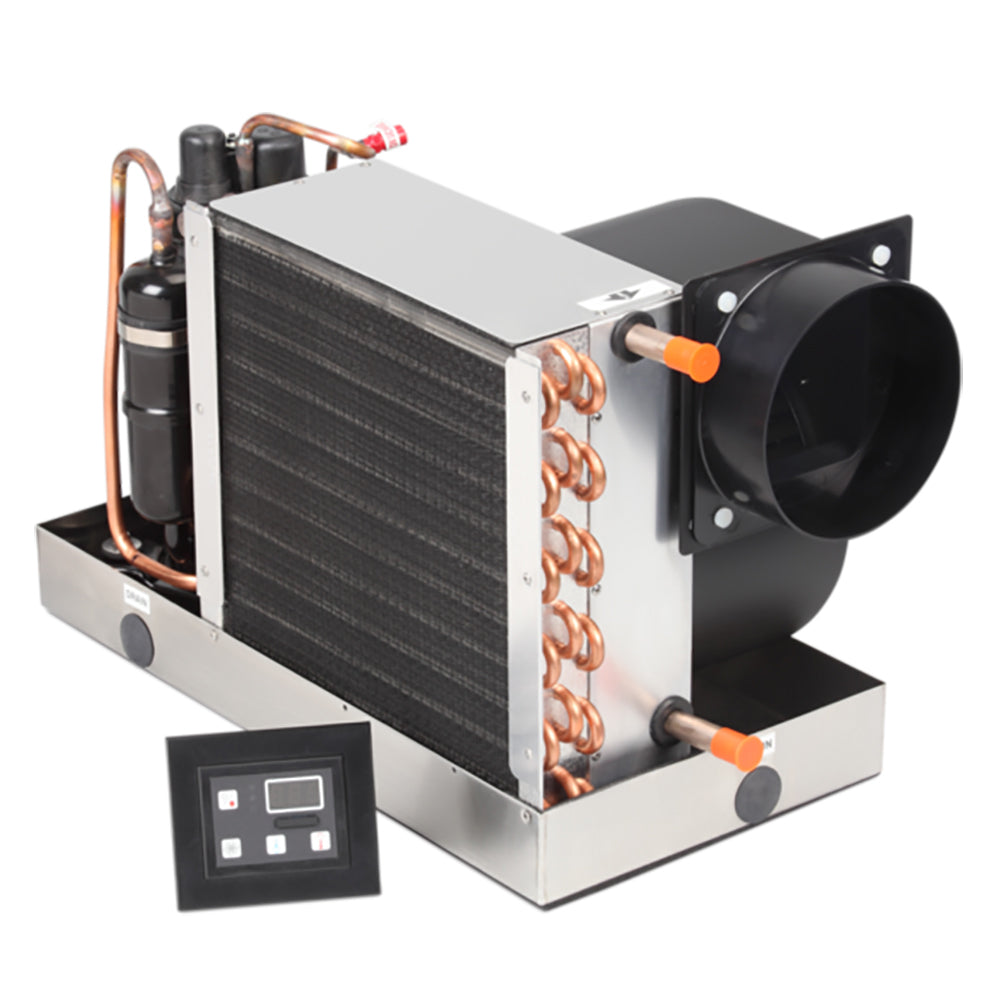

Dometic EnviroComfort ECD16K-HV AC Retrofit Kit - 115V - 16,000 BTU

EnviroComfort ECD16K-HV AC Retrofit Kit - 115V - 16,000 BTU

The Dometic Marine Air 16,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 16,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 12,000 to 16,000 BTU range.

All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.

ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.

Legacy Part Number - 207500316

Features:

• High-velocity, rotatable blower for horizontal or vertical installation
• Environmentally friendly R-410A refrigerant
• Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)
• Plastic remote electrical box for convenience in mounting
• Stainless-steel drain pan
• Pre-installed return-air filter, easily removable and cleanable
• Small, compact, space-saving design

Specifications:

• Input voltage - 115 V
• Starting amps - 62 A
• Fuse Max. / Min. - 40 A/25 A
• Input frequency 50/60 Hz
• Refrigerant type - R410A
• Colling capacity - 16,000 BTU
• Min. supply duct size - 6"
• Seawater inlet connection - .625"
• Dimensions - Height 13.5" x Width 20" x Depth 11.25"

In the Box:

• Self-contained AC unit
• Digital control w/bezel and 15' cable
• Instruction manual

*Sold as an Individual
