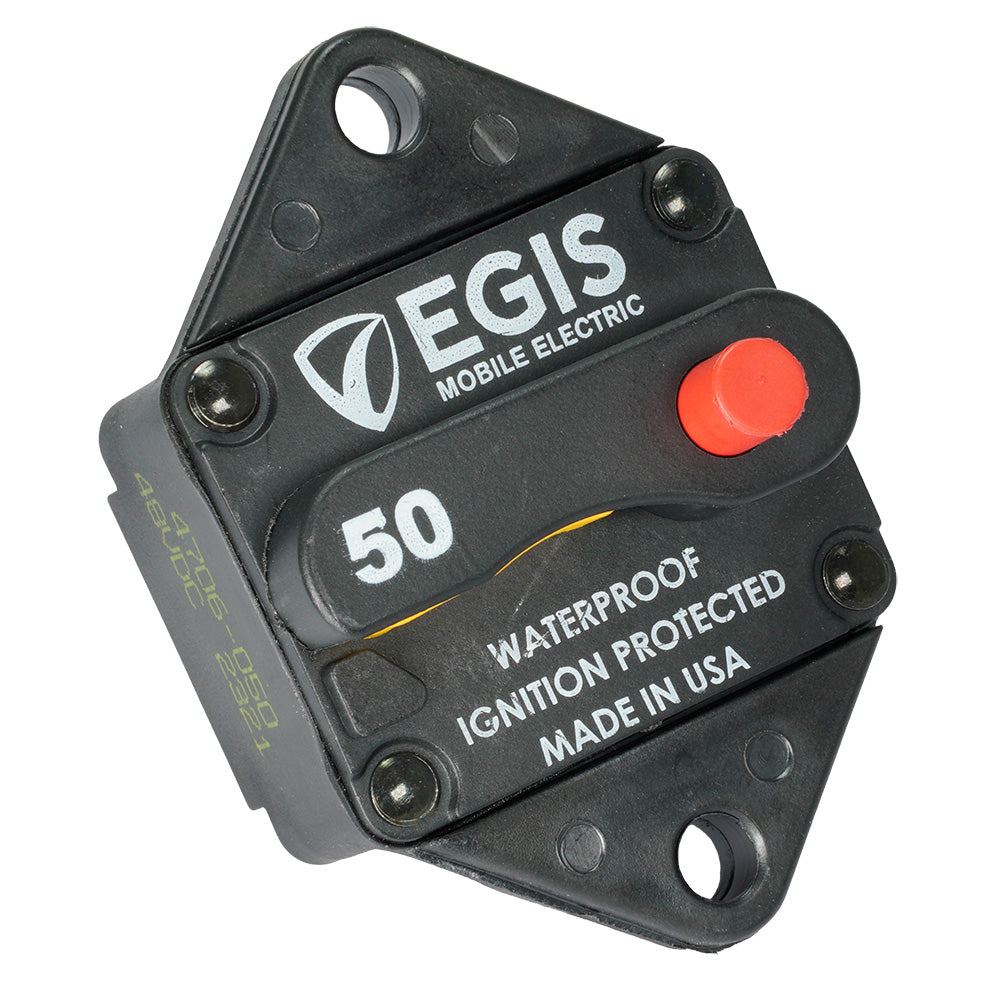

Egis 4706-050 50A Panel Mount Circuit Breaker - 285 Series
Egis 4706-050 50A Panel Mount Circuit Breaker - 285 Series

Egis 4706-050 50A Panel Mount Circuit Breaker - 285 Series

Manufacturer: Egis Mobile Electric
MPN: 4706-050
Availability: 22 In Stock
$29.51
$46.00
$29.51
Subtotal: $29.51
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Egis 4706-050 50A Panel Mount Circuit Breaker - 285 Series

Egis Mobile Electric

Egis 4706-050 50A Panel Mount Circuit Breaker - 285 Series

$29.51
Egis 4706-050 50A Panel Mount Circuit Breaker - 285 Series

Egis Mobile Electric

Egis 4706-050 50A Panel Mount Circuit Breaker - 285 Series

$29.51
Description
Description
x

50A Panel Mount Circuit Breaker - 285 Series

This 50A Egis panel mount circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

  • Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
  • Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

  • Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • High Voltage (48 Vdc) Rating - easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
  • High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
  • High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
  • 4 Year Warranty - Egis stands behind their product's ability to meet the user's needs

Specifications:

  • Continuous Current Amps: 50
  • Max Voltage: 48
  • Cycling Endurance: 6,000
  • Interrupt Current @16 VDC (Amps): 5,000
  • Interrupt Current @28 VDC (Amps): 3,000
  • Ingress Protection Rating: IP67

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. High temperature rating for all installation locations.

Panel Mount Flange

Provides rear / front panel installation options.

Stainless Steel Hardware / KEPS Locking Nuts

Corrosion and vibration resistant for harsh environment applications.

Proudly Made in the USA

Made in the USA of high quality components.

Read More
