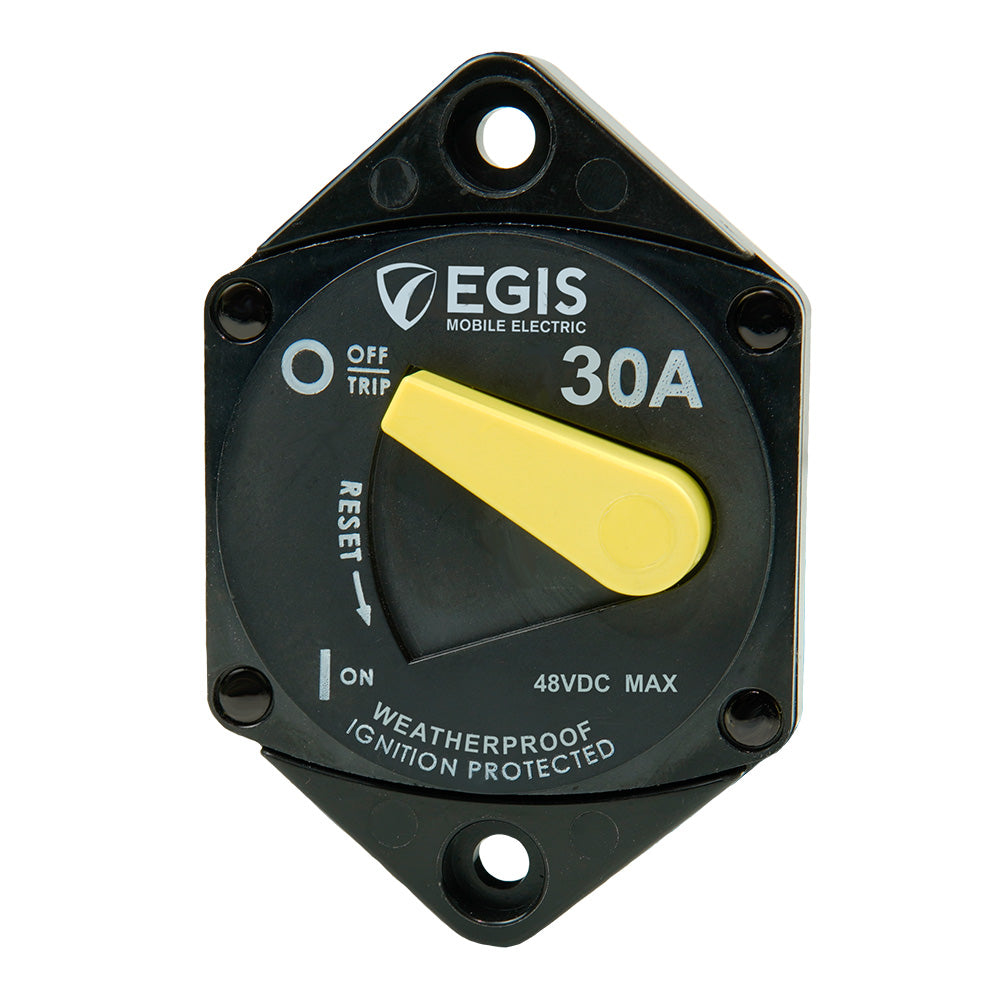

Egis 4707-030 30A Panel Mount 87 Series Circuit Breaker
Egis 4707-030 30A Panel Mount 87 Series Circuit Breaker

Egis 4707-030 30A Panel Mount 87 Series Circuit Breaker

Manufacturer: Egis Mobile Electric
MPN: 4707-030
Availability: 10 In Stock
$55.73
$80.00
$55.73
Please hurry! Only 10 left in stock
Subtotal: $55.73
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Egis 4707-030 30A Panel Mount 87 Series Circuit Breaker

Egis Mobile Electric

Egis 4707-030 30A Panel Mount 87 Series Circuit Breaker

$55.73
Egis 4707-030 30A Panel Mount 87 Series Circuit Breaker

Egis Mobile Electric

Egis 4707-030 30A Panel Mount 87 Series Circuit Breaker

$55.73
Description
Description
x

30A Panel Mount 87 Series Circuit Breaker

This 30A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen.

Applications:

  • Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
  • Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
  • Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

  • IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
  • High electrical and manual switching endurance delivers 2,000 cycles at full current
  • High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-year warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

  • Continuous Current Amps: 30
  • Max Voltage: 48
  • Cycling Endurance: 2,000
  • Interrupt Current @14 VDC (Amps): 5,000
  • Interrupt Current @28 VDC (Amps): 3,000
  • Ingress Protection Rating: IP66

Focal Features

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Circular Design

Compatible with circular cutout enables easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.
