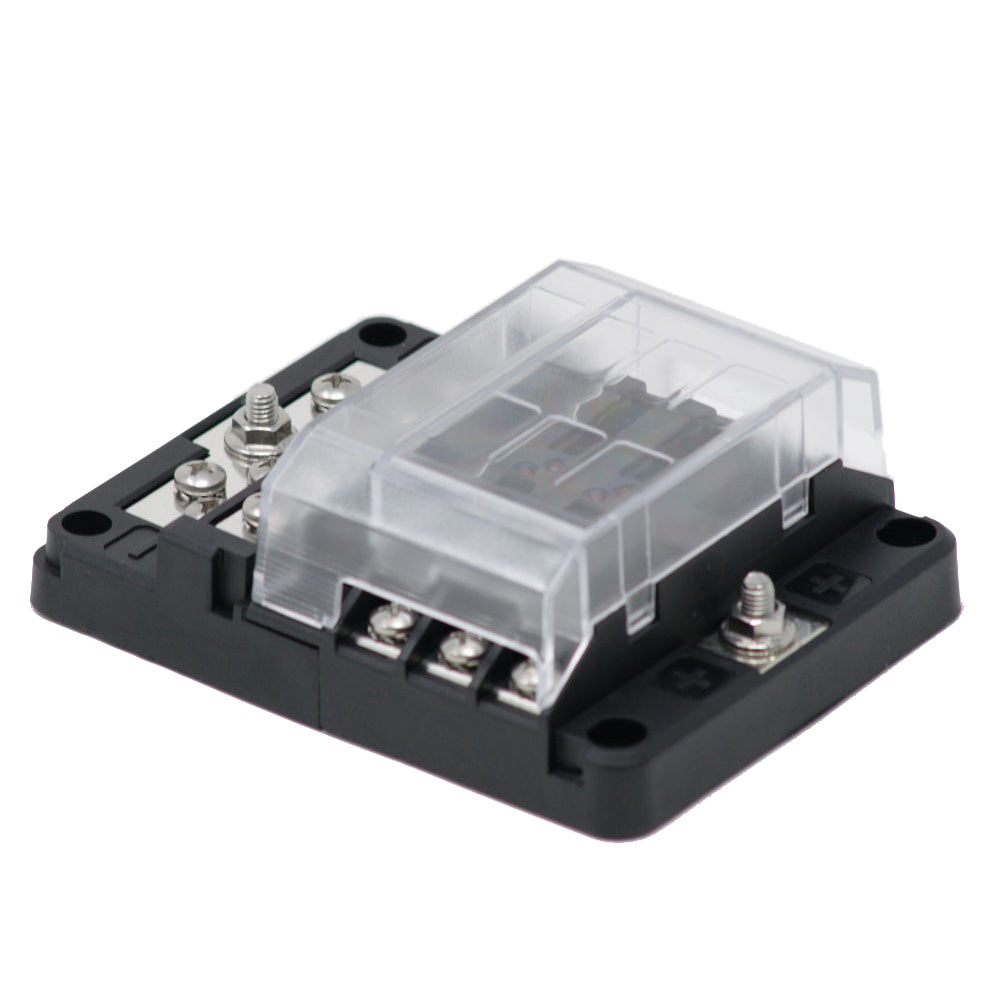

Egis 8025-D-1 RT Fuse Block 6 Position w/Ground & LED Indication
Egis 8025-D-1 RT Fuse Block 6 Position w/Ground & LED Indication

Egis 8025-D-1 RT Fuse Block 6 Position w/Ground & LED Indication

Manufacturer: Egis Mobile Electric
MPN: 8025-D-1
Availability: 13 In Stock
$29.02
$46.00
$29.02
Please hurry! Only 13 left in stock
Subtotal: $29.02
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Egis 8025-D-1 RT Fuse Block 6 Position w/Ground & LED Indication

Egis Mobile Electric

Egis 8025-D-1 RT Fuse Block 6 Position w/Ground & LED Indication

$29.02
Egis 8025-D-1 RT Fuse Block 6 Position w/Ground & LED Indication

Egis Mobile Electric

Egis 8025-D-1 RT Fuse Block 6 Position w/Ground & LED Indication

$29.02
Description
Description
x

RT Fuse Block 6 Position with Ground & LED Indication

This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.

Applications:

  • Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
  • Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

  • Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
  • Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
  • Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

  • Maximum Current (Entire Block) Amps: 100
  • Maximum Current (Per Circuit) Amps: 30
  • Max Output Wire Size: #10 AWG
  • Voltage Range VDC: 0-36
  • Number of Fuse Positions: 6
  • Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.

Ground Block Separates

The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.
