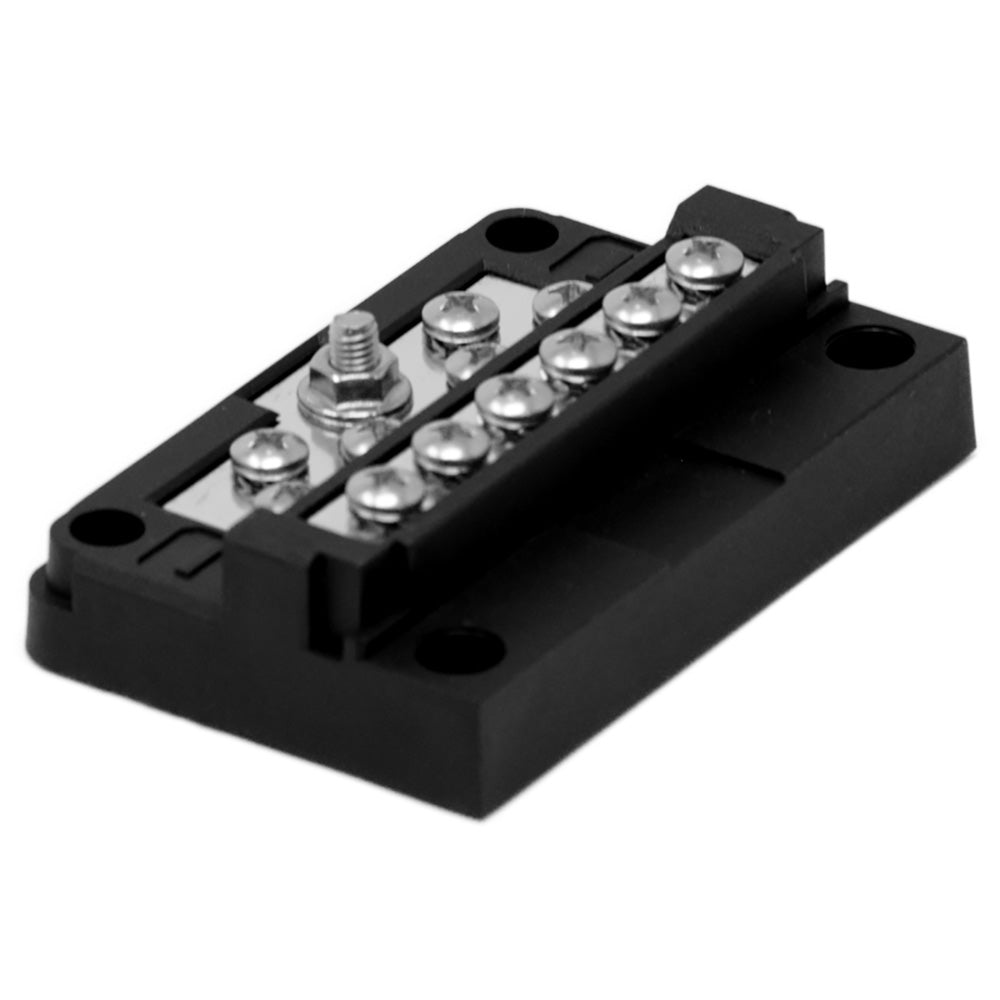

Egis 8030-D-1 RT Screw Terminal 12 Circuit Dual Lever Bus Bar

RT Screw Terminal 12 Circuit Dual Lever Bus Bar

This Egis bus bar seamlessly integrates with RT fuse blocks, can be used as a standalone ground bus, or can be assembled with an existing RT Series fuse block line. Also, this multi-level low-amp has terminal screws for improved mounting.

Applications:

• The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
• RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
• Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 12
• Output Terminal Connection Ring Terminal Size: M4 / (#8)

Focal Features:

Robust Materials For Harsh Environments

All attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.

Seamlessly Integrates With RT Fuse Blocks

It can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint.
