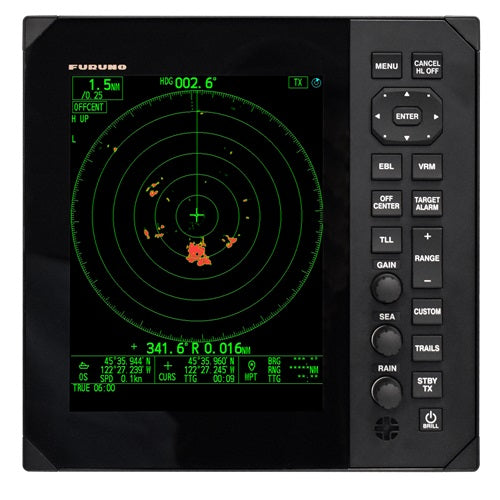

Furuno 10.4" Portrait-Style Radar, less antenna

Model: FR10

Risk Visualizer is a unique feature that allows the navigator to see areas with a high risk of collision as well as displaying the time to reach those areas, with many options for customization. This technology shows potential collision areas based on the current position and movement of all surrounding vessels, providing a quick and intuitive overview of the situation around your ship. Color-coded alerts help you assess the level of danger and plan your next move, contributing to the continuous improvement of safety at sea.

DRS Radars include features such as Fast Target Tracking, immediately displaying a vector line indicating the target’s speed and heading. When connected to an NXT Radar, solid-state features are unlocked, such as RezBoost Beam Sharpening and Target Analyzer, instantly identifying hazardous targets.

Custom AIS presentation, flexible Anti-Clutter controls, and a Stern Up presentation are all available.

Fast Target Tracking is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediatley calculate the target;s trajectory and display the velocity vector.

Echo Average is a Feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, preceipitation or dense fog.

Specifications
Display Unit
Screen Size 10.4-inch Colot LCD
resolution 800 x 600 (SVGA)
Antenna Unit
Range Scale DRS5DL+ 0.0625 to 36nm
Range scale DRS52DNXT/4DNXT 0.0625 to 48NM
Range Scale DRS6A-NXT 0.0625 to 72NM
Range Scale DRS6A/12A/25A, DRS12ANXT/25A-NXT 0.0625 to 96nm
Main Functionalities
Risk Visualizer Available
Target Analyzer Available *Solid State Sensors only
Target Tracking Available *Fast Target Tracking
True Echo Trail Available
Echo Average Available
Sub Display Unit Available *2 Units Max
AIS Display Available
Radar Overlay on Charts No
Interface
Available ports NMEA0183x3, NMEA2000 x 1, LAN x 1, HDMI Out x 1, USNB x 1 Contact Closure X 1
Power Supply
Volatage 12-24vDC
Draw 1.1/0.6A
Enviromental Conditions
Ambient Temperature -15C to +55C
Degree of protection Front Panel IP55, Rear Panel IP22

What's in the Box:
  • RDP160-E Color LCD Display
  • Sun Cover
  • Power Cable
  • Cable tie
  • Flush Mount
  • Documentation
  • Fuse FGBO-A 250V 2 A PBF
  • Tapping Screw 5x20 SUS304 x 4
  • Cable Tie x 4
  • F Mounting Sponge 10H x 2
  • F Mounting Sponge 10V x 2
  • Mounting Bracket and Knobs
