Fusion 010-02918-41 Apollo 10" LED Marine Subwoofer w/Sports White Grille

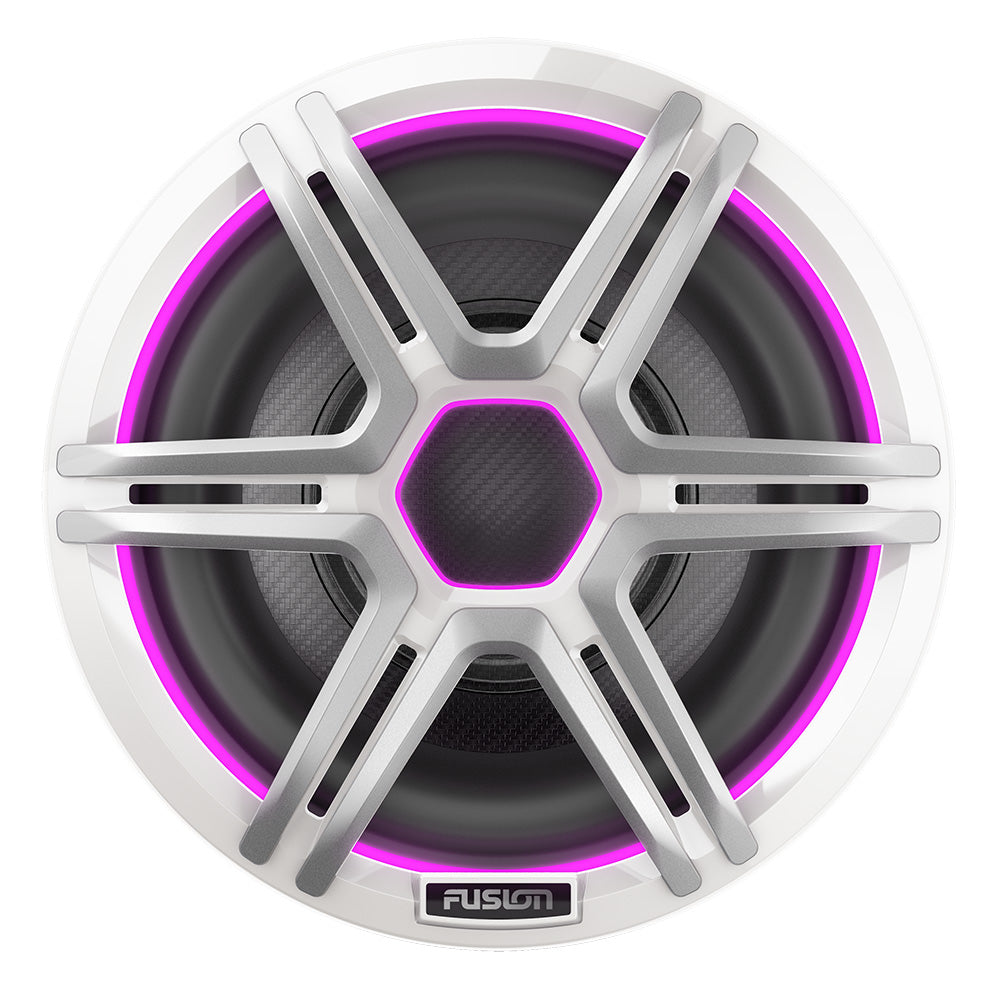

Apollo™ 10" LED Marine Subwoofer with Sports White Grille

SURRENDER TO THE SOUND

Fusion Apollo subwoofers deliver immersive, high-fidelity bass on the water and are engineered to withstand harsh marine conditions.

• Crystal-clear premium sound quality
• Match the mood with dual-hue LED lighting rings
• Rigorously tested marinized design

Premium Bass

Enjoy immersive bass at higher volumes, thanks to updated motor designs that reduce distortion for a premium sound experience.

LED Lights

Showcase your boat with the dual-hue LED lighting rings that provide a unique look. Choose from a broad range of colors to match the mood or music.

Interchangeable Grilles

Complete your speakers with the included sports white interchangeable grilles. For more protection, purchase the shielded grille (also available in gray or white).

Fusion® Audio System

Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.

System Integration

Pair your speakers with Fusion® head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.

Marinized Connectors

Embedded water-resistant marinized connectors simplify the design and make installation easy; they also meet ABYC requirements.

Hear the Beat

Pair your subwoofer with the Fusion® Apollo™ speakers for immersive, high-fidelity audio on the water.

Subwoofer Grilles

All types of subwoofer grilles provide a distinct look and complement the dual-hue LED lighting.

Easy Install

The grilles are simple to install without tools and don’t have screws for a seamless look and finish.

Durable

Fusion Apollo subwoofers are the most durable on the market and are built to withstand abuse in harsh marine environments (by IP67 rating and ISO 12216 standards).

In the Box:

• Subwoofer with a sports white grille
• Audio cable with water-resistant two-way connector
• LED cable with water-resistant six-way connector
• Mounting screws
• Documentation

General Specifications:

• Size: 10"
• Color: Sports White
• Physical dimensions (Diameter x Depth): 10.83" x 6.92"
• Water and dust rating: IP66/IP67
• Configuration: Subwoofer
• Peak power: 600w
• RMS power: 300w
• Sensitivity (1 watt @ 1 meter): 86 dB
• Frequency response: 30 Hz - 2 kHz
• Nominal impedance: 4 ohms
• Recommended amplifier power (RMS): 50 - 300 W
• LED lighting: Yes (CRGBW, 5 colors)
• LED supply voltage: 10.8 - 16 VDC
• LED load current @14.4 VDC: 0.19 A per color, per speaker
• LED load current @14.4 VDC when using Garmin Spectra™1: 0.40 A maximum per speaker
• Operating temperature range: 32° to 122° F (0° to 50° C)
• Voice coil diameter: 2"
• Cone material: Polypropylene Cone with rubber surround
• Compass-safe distance: 13.45 ft (410 cm)
• Speaker connection: 5.9" (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25" (6.3 mm) positive and 0.19" (4.8 mm) negative)
• LED connection: 5.9" (150 mm) water-resistant 6-way connector (6-pin, CRGBW, and ground)
• Warranty: 3 years

Mounting Dimensions (Cutout):

• Mounting diameter clearance: 8.78" (223 mm)
• Mounting depth clearance: 5.31" (135 mm)

¹When using Garmin Spectra™, any color combination can be created using the equivalent current draw of two CRGBW LED channels. This reduces power consumption and increases the number of speakers or subwoofers Garmin Spectra can control.
