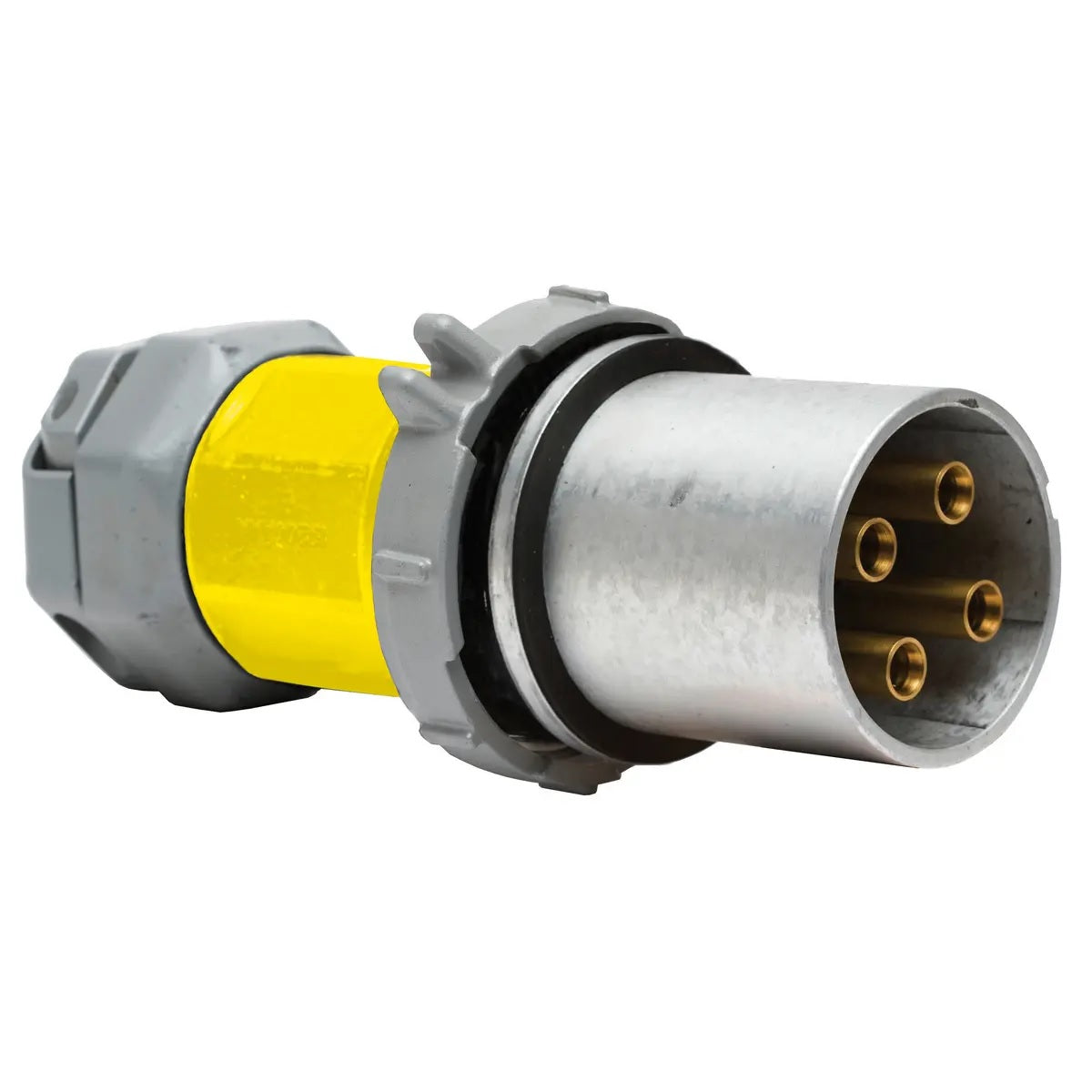

Hubbell HUBM5200PS1 200A Male Plug 600V 4 Pole 5 Wire
Hubbell HUBM5200PS1 200A Male Plug 600V 4 Pole 5 Wire

Hubbell HUBM5200PS1 200A Male Plug 600V 4 Pole 5 Wire

Manufacturer: Hubbell
MPN: HUBM5200PS1
Availability: Out Of Stock
$1,338.45
$2,297.00
$1,338.45
Subtotal: $1,338.45
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Hubbell HUBM5200PS1 200A Male Plug 600V 4 Pole 5 Wire

Hubbell

Hubbell HUBM5200PS1 200A Male Plug 600V 4 Pole 5 Wire

$1,338.45
Hubbell HUBM5200PS1 200A Male Plug 600V 4 Pole 5 Wire

Hubbell

Hubbell HUBM5200PS1 200A Male Plug 600V 4 Pole 5 Wire

$1,338.45
Description
Description
x


Hubbell was the first to offer a marine-ized UL listed 100 AMP Ship-To-Shore system and now, they are the first to offer a marine-ized, UL listed 200 AMP ship-to-shore system.

Hubbell's 200 AMP Ship-To-Shore System is:

  • NEMA 4X rated for superior water resistance.
  • Made of copper-free aluminum with an electrostatically applied epoxy/polyester finish.
  • Accepts a cord range of #1 AWG ? 250 MCM.
  • Pin and sleeves are made of nickel-plated Tellurium copper for superior corrosion and heat resistance.

And fully interchangeable with UL 1686 configured and listed devices such as Crouse-Hinds® Arktite® or Appleton® Powertite® (when installed in
accordance with instructions furnished with device)


M5200BS1R
Gray metallic watertight shore power inlet with wingnut-secured lid for water tightness when not in use

M5200CS1R
Gray/yellow metallic watertight connector body with locking ring to make inlet/connector body interface watertight. Cord range is #1 AWG-250 MCM (0.653 max. conductor diameter)

M5200PS1
Gray/yellow metallic watertight plug with locking ring to make plug/receptacle interface watertight. Cord grip range is #1 AWG-250 MCM (0.653 max. conductor diameter)

M5200RS1
Gray metallic, watertight dockside receptacle with wing nut-secured lid for water tightness when not in use.

M5200CS1
Gray/yellow metallic watertight connector body with wing nut-secured lid for water tightness when not in use. For making plug/connector body interface on extension cords or adapter.

MB2003W
Gray metallic Back Box for inlets and receptacles has 15° angle section which can be installed in any of  4 positions, 2.0 in. N.P.T. hub.

MB2004W
Gray metallic Back Box for inlets and receptacles has 15° angle section which can be installed in any of  4 positions, 2.5 in. N.P.T. hub.
