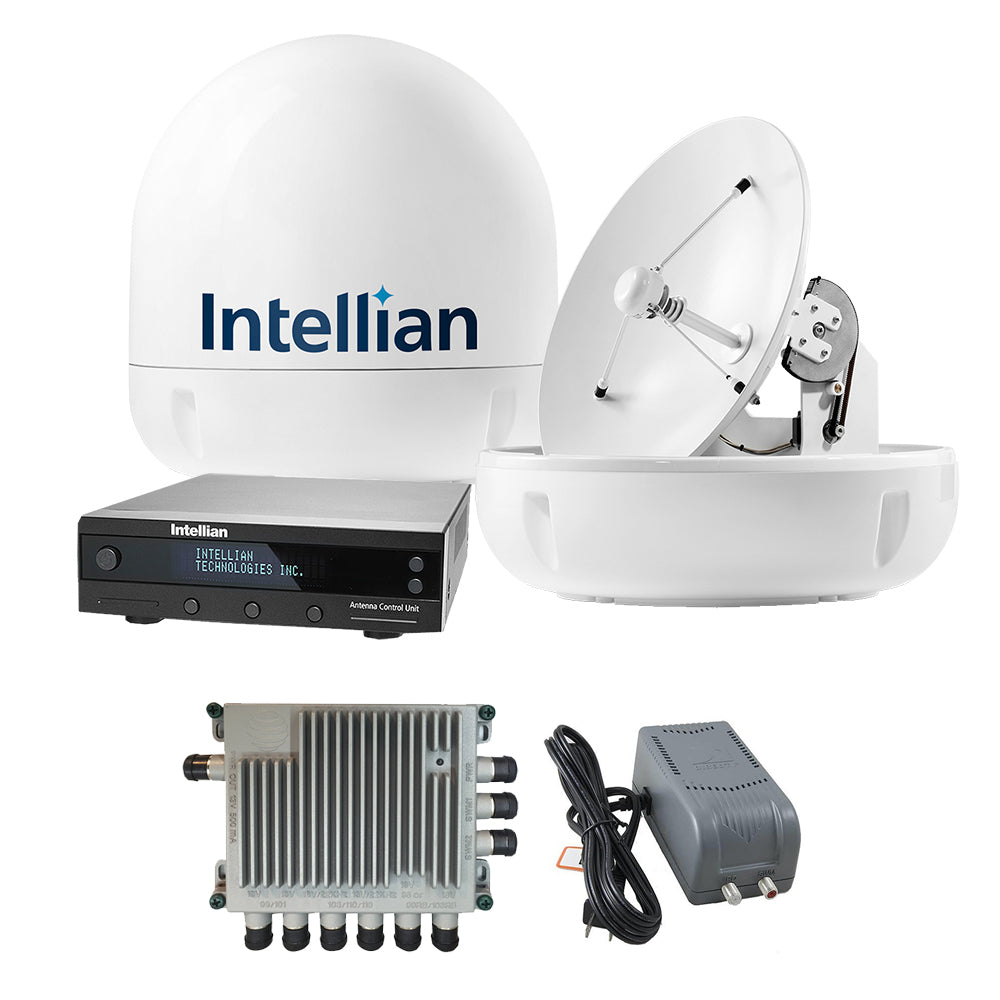

Intellian i6 All-Americas TV Antenna System & SWM-30 Kit B4-I6SWM30

i6 All-Americas TV Antenna System & SWM-30 Kit

i6 All-Americas TV Antenna System

The Intellian i6 provides superior tracking performance and efficiency compared to antenna systems of similar size. With its stylish dome, the i6 is ideal for boats over 65 feet. The i6 brings boaters the excitement and variety of satellite TV programs while the vessels are traveling around coastal or blue water regions, the larger reflector size of the Intellian i6 increases the range that the unit will operate.

You will never have to compromise on reception or quality. The i6 offers the highest signal strength available along with Intellian patented innovations, Wide Range Search (WRS), and Dynamic Beam Tilting (DBT) technologies. Therefore, the i6 can always offer the most precision tracking capabilities and superior satellite signal reception while the vessel is cruising at high speed or in rough sea conditions.

The most innovative design of i6 is the integrated smart HD and TriSat modules in the antenna control unit (ACU) which allows boaters to access their favorite HDTV channels from leading satellite TV service providers freely just like they are used to do at home. Combined with the built-in WiFi enables simple one-touch upgrades using the Aptus App.

The i6 brings you trouble-free installation and operation with its single cable design between the antenna and the control unit. With the Intellian MIM Switch (M2-TD02) sold separately, boaters can enjoy changing Dish Network HD channels with automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details. Plus, the Intellian i6 has a built-in GPS system to enhance satellite acquisition time and accuracy. For DirecTV users the Intellian i6 offers the full range of SD channels, upgrade to the Intellian s6HD for HD programming from DirecTV.

Features:

Fully Automated System

• Automatic satellite search and identification function
• 2-axis step motor for controlling the antenna pedestal

High-Quality Antenna

• 23.6 inch (60 cm) Reflector antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal
• LHCP/RHCP or Horizontal/Vertical polarization
• Enabling powerful signal gain

Superior Dynamic Tracking

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high-speed BLDC motor

Fastest Search Algorithm

• Wide Range Search (WRS) algorithm
• Statistical search algorithm

DVB (Digital Video Broadcasting) Signal Identification

• High-speed identification employing DVB decoder
• QPSK demodulator lock for DSS signal

Built-in GPS System

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

SWM-30 Kit

The latest and greatest external multi-switch from DIRECTV feeds up to 26 tuners in two banks of 13 for easy wiring. Supports 4K and the use of the international WorldDIRECT dish. Also included is a 29-volt power inserter that supports the SWM-8 or SWM-16 multi-switch remotely through a coax cable. It can operate from the power passing port of a splitter, or on the SWM-16, which can be run from the separate PWR port.

Features:

• Supports two banks of 13 tuners (no MoCA/MRV crossover)
• Replacement for SWM-8, SWM-16, and SWM-32 multi-switches
• Compatible with previous generation Slimline dishes
• Compatible with Genie and Genie 2
• For use with WorldDIRECT dish, use WD-DIPLEXER-09 diplexer sold separately
• For use with 4K installations, use SL5RB or SL3RBAH LNB (6 coax cables to the SWM)
• Output level -25dBm
• Powers any coax-powered device up to 13V, 500mA
• Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
• Can be used for the SWM-8 and SWM-16
• Outputs: 1 IRD & 1 SWM
• SWM Port Output: 29V
