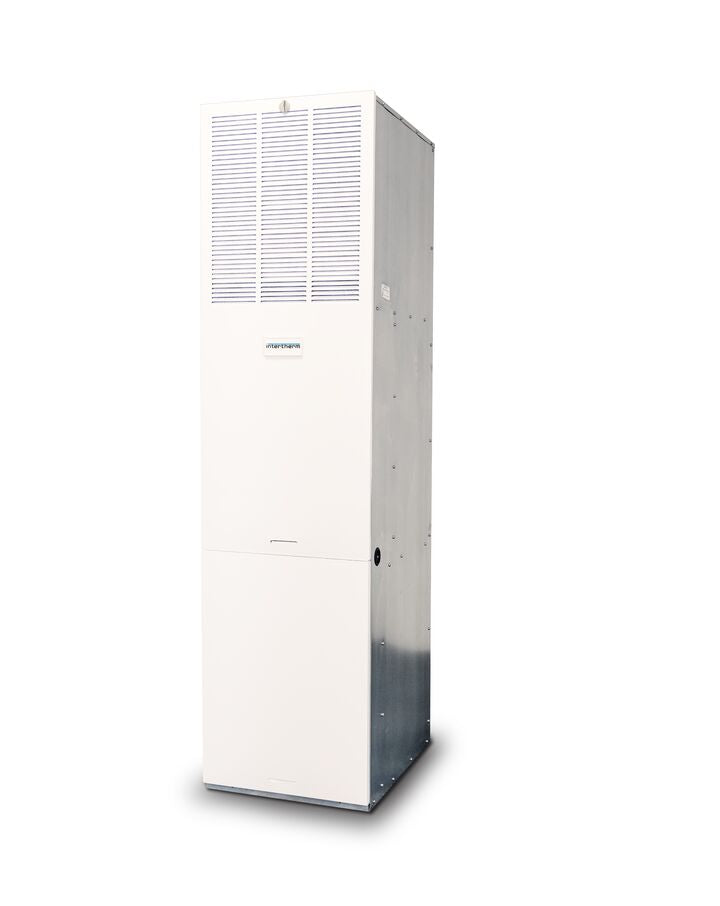

Intertherm 1048432 MG2S 060 96% 75" Gas

ECM blower: Designed to give a wide range of cooling and heating airflows. 2-stage gas valve: Provides 2-stage thermostat control 2-stage inducer: Optimizes efficiency on first stage heat and reduces sound levels. 100% fired and tested: All units and each component (both mechanical and electrical) are tested on the manufacturing line. Clean and quiet operation: Due to the unique design of in-shot burners, location of inducer and use on insulation. Fixed 30 second blower delay: At burner start-up assures a warm outlet air temperature at furnace start-up. Adjustable blower off settings (60, 90, 120 and 180 seconds). Fixed 30-second post purge: Increases life of heat exchanger. Dependable, hot surface igniter: Innovative application of silicon nitride type igniter. Utilizes proven Smartlite ® technology to extend igniter life. Tubular primary heat exchanger: Heavy gauge aluminized steel heat exchanger assures a long life. Stainless steel secondary heat exchanger: Assures a long life. 60 second fixed cooling cycle blower-off delay (TDR): Increases cooling performance when matched with an approved coil. Sealed combustion approved for direct vent furnace, category IV venting system: May be vertically or horizontally vented using a two-pipe system for maximum flexibility in installation. LP Convertible: Simple burner orifice and gas valve regulator change for ease of convertibility. 3 amp fuse protection against low voltage shorts: Protects transformer and control board Low voltage terminal board: for easy field wiring. Easy open pawl latch: Secures the door firmly for transit, yet allows easy removal for access. Appliance quality door: Protects against rust and other corrosion. Baked enamel finish allows for easy cleaning. Fully insulated cabinet: Insures minimized heat loss and quiet operation. Color coded wire harness: Designed to fit the components, all with quick-connect fittings for ease of service and replacement 40VA transformer included. Diagnostic lights for easy troubleshooting without counting flashes: Dedicated light for flame signal strength and 2 lights in combination to indicate all other fault codes with easy to recognize states without counting flashes. Base Warranty: 1 year limited parts & 20 year heat exchanger warranty, With Registration: 5 year limited parts warranty.
