Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18
Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18 XKASML9X18

Manufacturer: Lectrotab
MPN: XKASML9X18
Availability: Out Of Stock
$1,284.05
$1,322.60
$1,284.05
Subtotal: $1,284.05
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18

Lectrotab

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18 XKASML9X18

$1,284.05
Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18

Lectrotab

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 18 XKASML9X18

$1,284.05
Description
Description
x

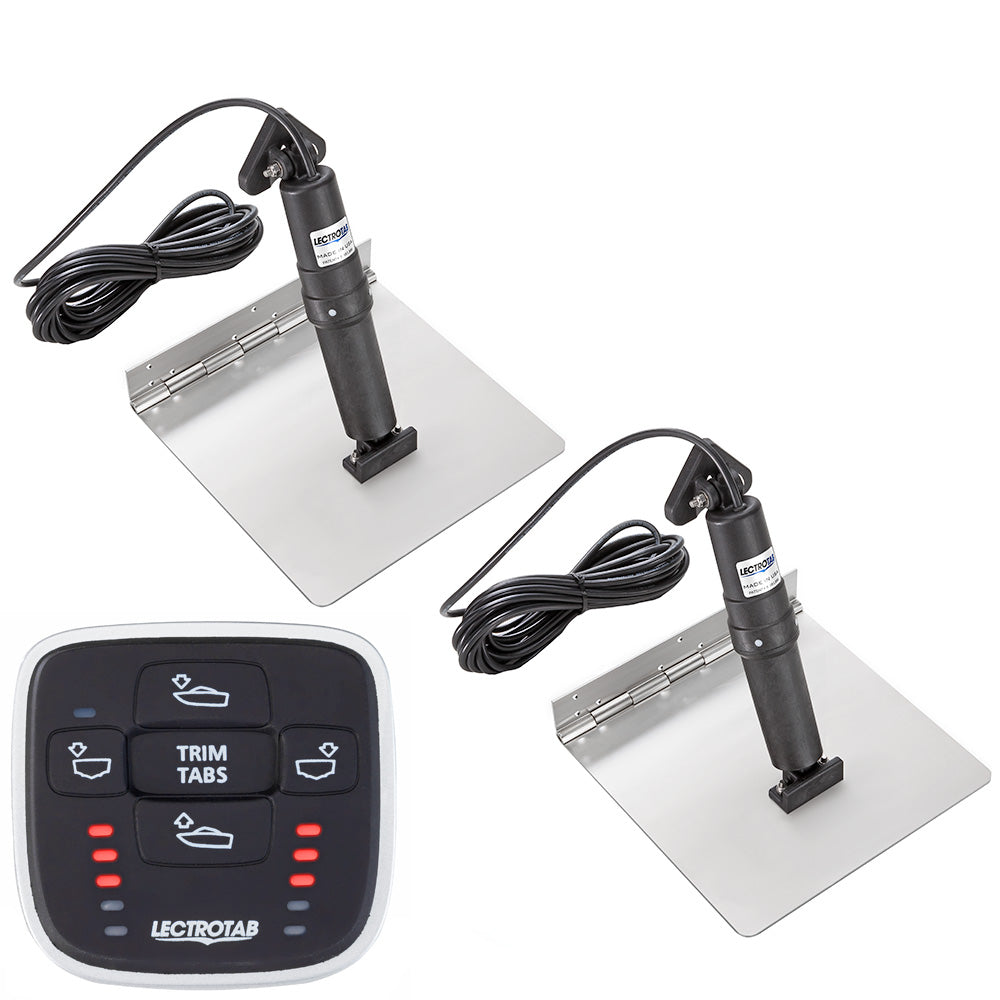

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features:

  • Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • Actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
  • Boat Length - 21' to 30' (6.5 to 9 M)
  • Trim Tab Material - 12 gauge, 304 Stainless Steel
  • Actuator DC Voltage - 12 V
  • Actuator Stroke Length - 2.25" (57 mm)
  • Actuator Cable Length  - 23' (7 M)
  • Actuator Vertical Height - 11.875" (302 mm)
  • Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
  • Control Mounting Hole Cutout - 2" (50 mm)
  • Control Operating Voltage - 12 or 24 V

In the Box:

  • One (1) Manual Leveling Control
  • Two (2) Stainless Steel tabs
  • Two (2) actuators w/23' (7 M) cables
  • Instruction Manual

*Sold as a Kit
