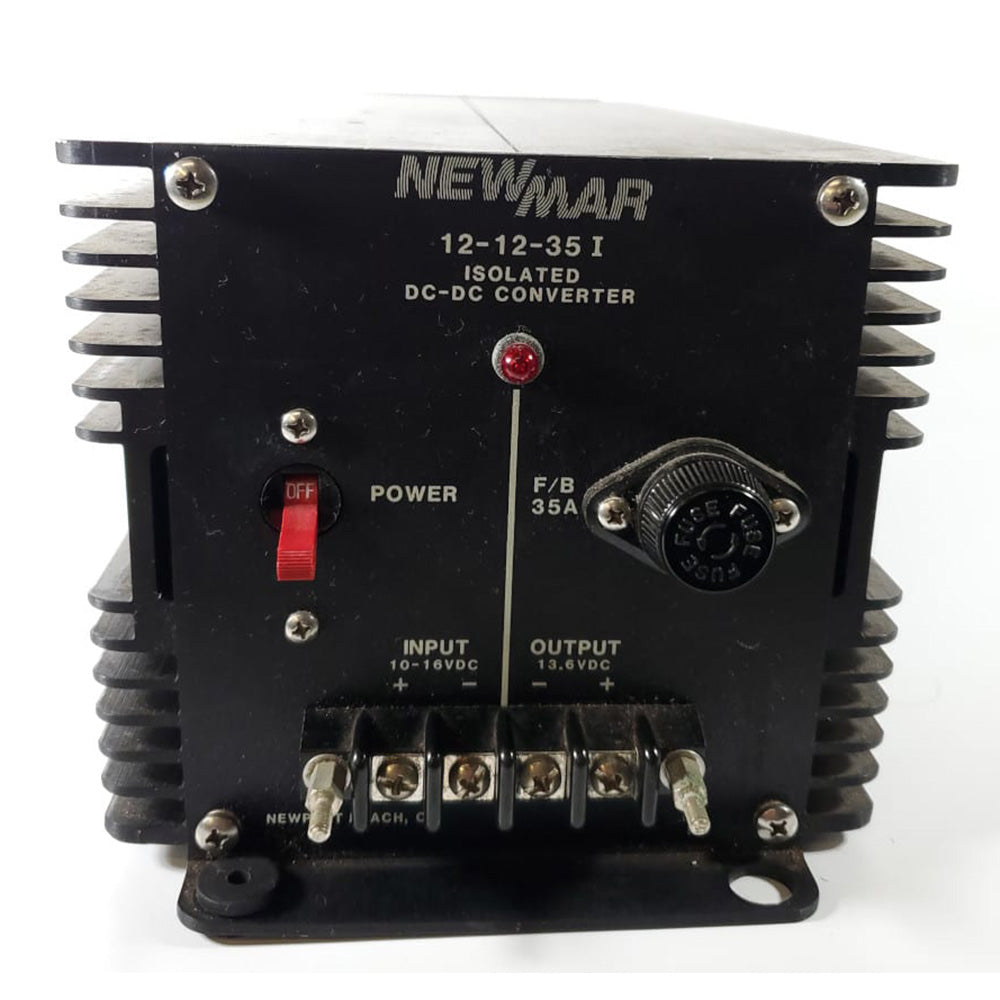

Newmar 12-12-35I 12-12-35I DC Converter

12-12-35I DC Converter

This isolated series provides voltage conversion as well as input/output isolation, allowing the use of negative ground gear in positive or floating ground battery systems, or vice versa.

Using an isolated converter as a voltage stabilizer on 12- or 24-volt systems can solve conducted noise and interference problems on sensitive DC-powered communication, navigation systems, and DC microprocessor-based devices.

Features:

• Wide range of input voltage
• Precise output voltage regulation
• Reverse polarity
• Input fuse/output fuse
• Total input/output isolation, pos. or neg. ground
• Current-limiting, short-circuit-proof output
• Automatic resetting of the thermal shutdown
• High/low input voltage shutdown
• Polyurethane conformal coating on PC board
• Power ON light
• Rugged case designed for high-vibration applications

Specifications:

• Input Voltage: 10-16
• Max Input Amps: 56
• Output Voltage: 13.6
• Output Amps (Intermittent): 35
• Output Amps (Continuous): 20
• Case Size (H x W x D): 6 x 6.8 x 16.5 inches (15.2 x 17.3 x 41.9 centimeters)
• Weight: 12 lb. (5.5 kg)
• Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)
• Ripple: 150 mV P-P maximum
• Regulation: 1% Line/Load
• Duty Cycle Ratings: Intermittent – 20 minutes max on time, 20% duty. current limit set at approx. 105% of the intermittent rating. Continuous – 24 hours, 100% duty
• Idle Current: Less than 100 mA (including power “ON” light )
• Operating Temp: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature
• Switching Frequency: 40 kHz
• Efficiency: 85% – Typical
• Isolation – Output/Chassis; Input/chassis: 250 VDC

Mechanical Specifications:

• Anodized aluminum heat sink case
• Front panel terminal block
• Heavy-duty mounting flange
• conformal-coated PC board

Options:

• Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
• Extreme vibration mounting kit. (Information below)

Option: Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles.

The kit replaces the standard vibration kit provided with the unit and fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify Kit L for units that weigh 2 -15 lbs. and Kit H for units that weigh 16 – 70 lbs.
