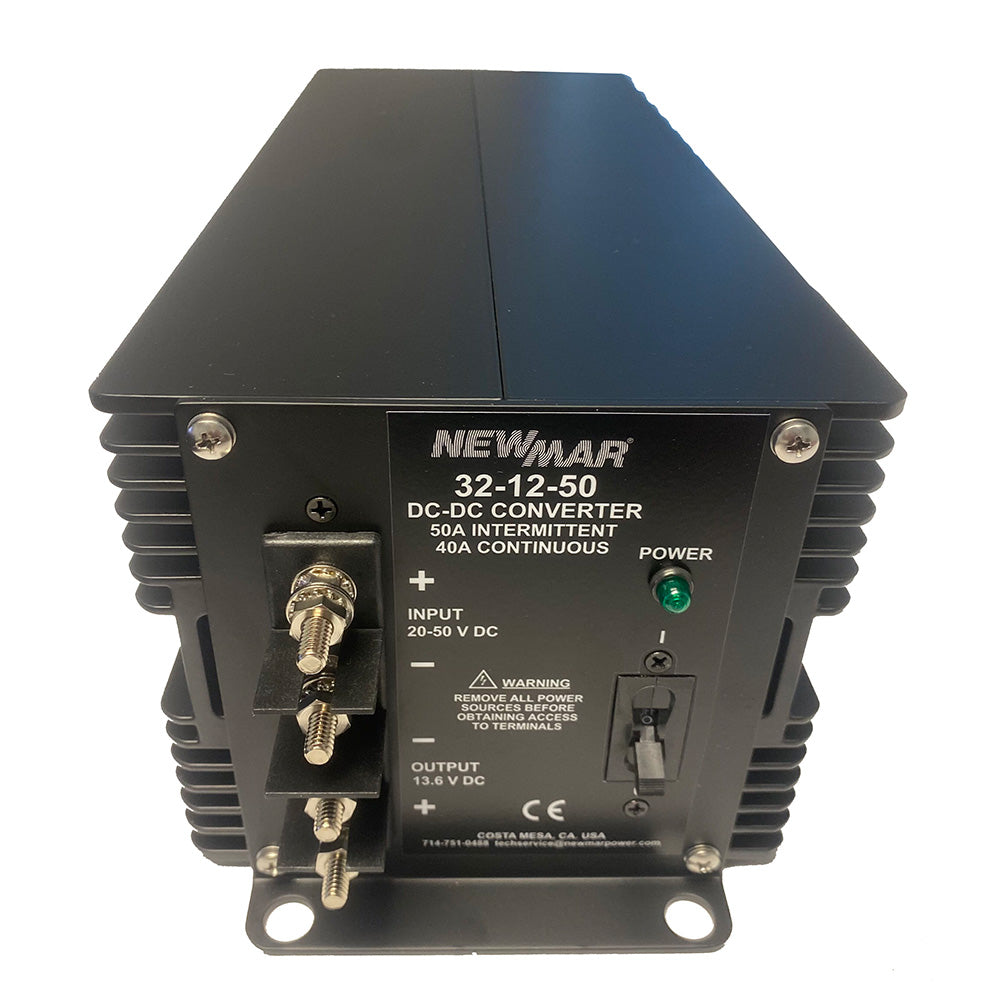

Newmar 32-12-50 32-12-50 DC Converter

32-12-50 DC Converter

Convert 20-50 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)

Features:

• Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating
• The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components
• Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments

Numerous Converter and Load Protection Circuits:

Current limiting

• Automatic thermal shutdown
• Short circuit proof
• Reverse polarity
• Overvoltage protection
• Carries CE mark

Specifications:

• Input Voltage: 20-50
• Output Voltage: 13.6
• Output Amps (Intermittent): 50
• Output Amps (Continuous): 40
• Case Size (H x W x D): 6.2 x 6.8 x 18.1 inches (15.7 x 17.3 x 46.0 centimeters)
• Weight: 16 lb. (7.3 kg)
• Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify)
• Ripple: 150 mV P-P maximum
• Regulation: 1% Line/Load
• Switching Frequency: 40 kHz
• Efficiency: 85% – Typical.
• Isolation: Output/Chassis; Input/chassis: 250 VDC

Duty Cycle Ratings*:

• Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating.
• Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time
• Idle Current: Less than 100 mA (including power “ON” light)

Operating Temp Specifications:

• 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C.
• Thermal shutdown @ 70 degrees C Case Temperature
• Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C

Mechanical Specifications:

• Powder-coated aluminum heat sink case
• Front panel terminal block
• Heavy-duty mounting flange
• Conformal coated PC board

Options:

• Operation as a battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)
• Extreme vibration mounting kit. (Information below)

Option: Extreme Vibration Mounting Kit

The Extreme Vibration Mounting Kit is available to protect Newmar power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles. The kit replaces the standard vibration kit provided with the unit. It fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KIT L for units that weigh 2–15 lbs. and Kit H for 16–7 lbs.
