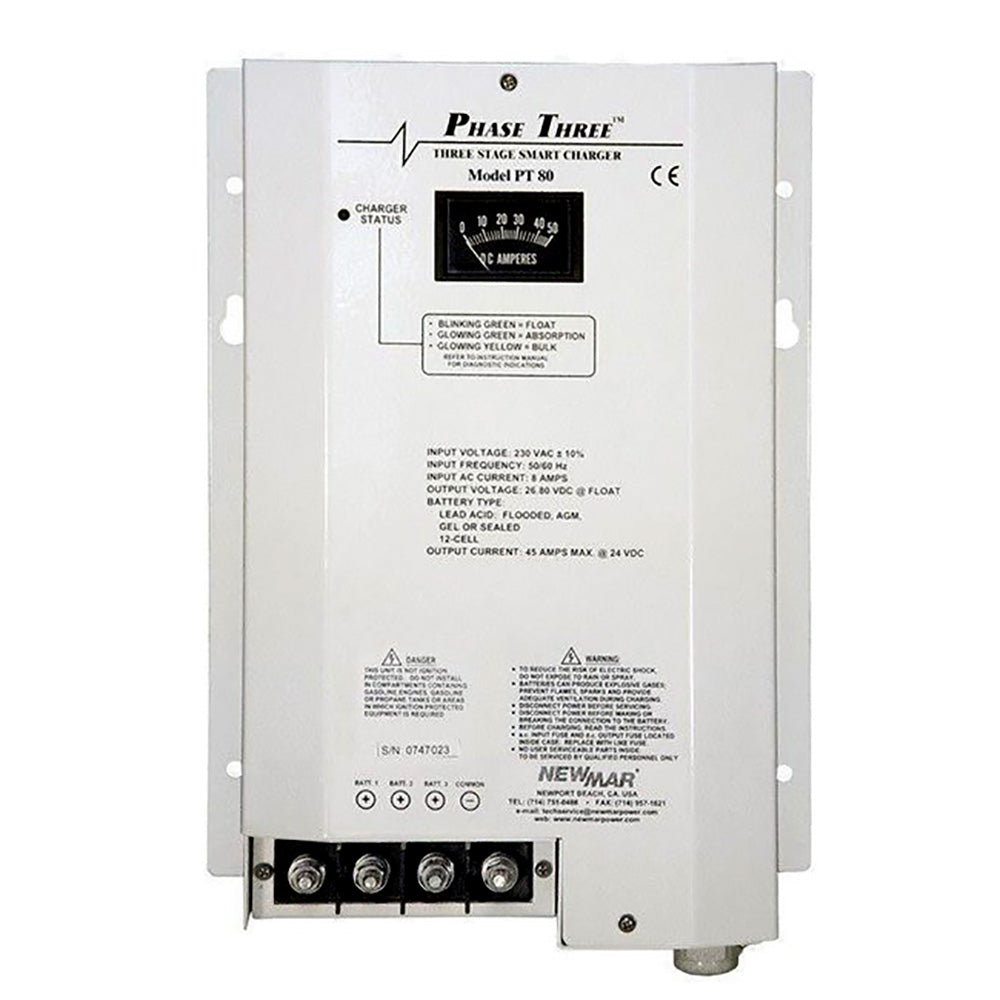

Newmar PT-80 PT-80 Battery Charger

PT-80 Battery Charger

Newmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 12-volt model
• “Smart” circuitry provides three-stage charging – bulk, absorption, and float
• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
• Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
• The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7)
• Current limitations prevent damage from overloading
• Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
• Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry
• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 90-264
• Input Amps @ Full Load: @ 115 VAC: 12, @ 230 VAC: 7
• Power Factor: .95@230V or .98@115V
• Max Output Amps: 80
• Output Banks: 3
• Battery Capacity (Amp-Hours): 160-800
• Operating Temp. Rating Reference: T-7
• Case Size Reference: A-5
• Case Size (H x W x D): 16.8C x 9.6 x 6.1C inches (42.7C x 24.4 x 15.5C centimeters) *Note with Dripshield installed C add 1” (2.54 cm) to height and .5” (1.27 cm) to depth
• Weight Lbs./Kg: 15.2/7
• Optional Temp. Sensor Model: TCS-12/24
• Remote Panel Model: RP
• Equalize Option: Yes
• Output Indicator Reference: M-3
• Compliance Reference: CE

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C
• Derate Linearly From 100% @ 50 degrees C to 80% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
• Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

• CG: USCG CFR 183.410 (Ignition protected)
• CE: Carries the CE mark
• ABS: PT Series meet SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13

Options:

• Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)
• Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional)
