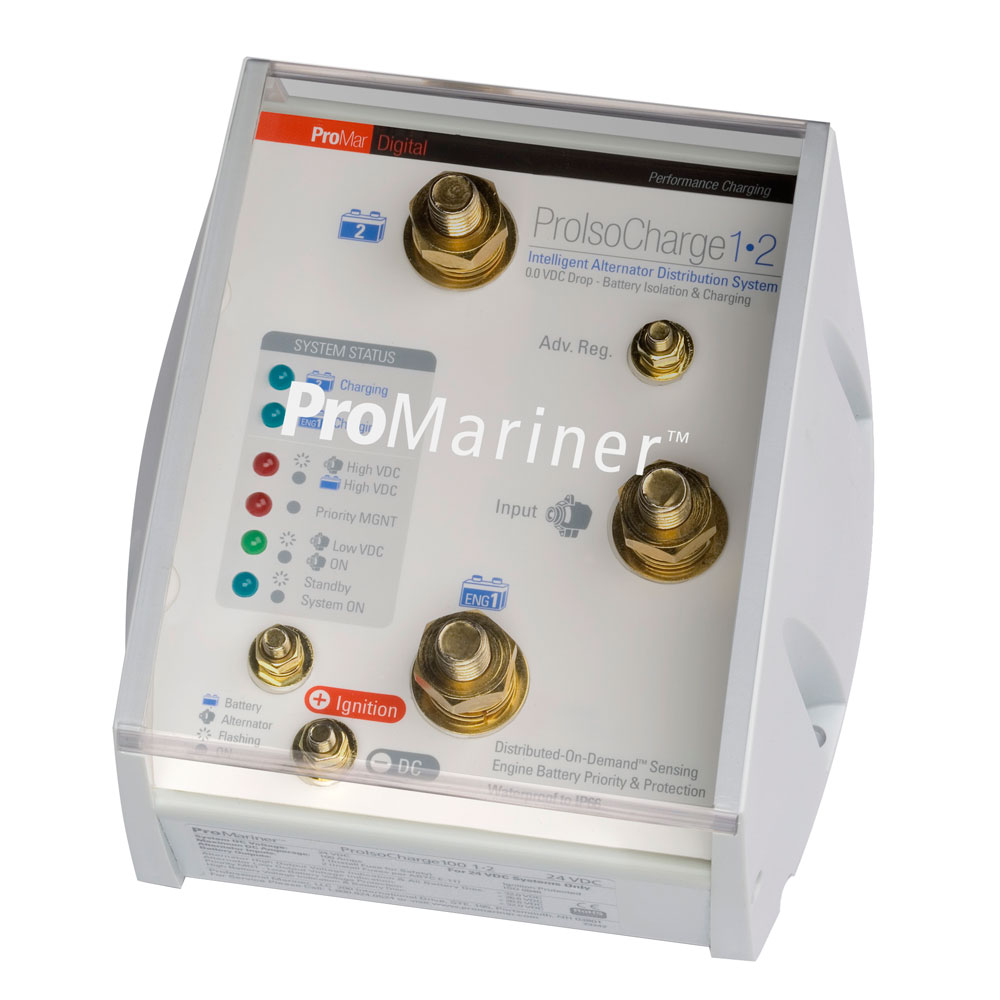

ProMariner ProIsoCharge Battery Isolator 180Amp 1-Alt 2-Bat - 12V 23122

ProIsoCharge Series

Model ProIsoCharge180 12
Part No. 23122
System Volts DC 12
Max DC Amps 180 Amp
Alternator Input 1
Battery Outputs  2
Size 6.15"(l) x 5.875"(w) x 3.125"(h)
Weight 3 lbs

Significantly Smarter...
ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries. An industry-changing design that provides intelligent and zero voltage loss isolation, charging of up to 3 other battery banks off a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2-alternator input model with up to 4 battery banks. Smart enough to provide priority charging to a battery bank that's under load by taking fully charged batteries offline. The all-in-one design eliminates the need for multiple voltage-sensitive relays to charge multiple battery banks simultaneously, saving space, installation time, and cost. Ensuring fully charged batteries and faster charge times, ProIsocharge eliminates the typical alternator voltage loss of 0.6VDC that's commonly associated with traditional diode-based isolators. Installed with the ProNauticP Series, a boat owner can enjoy the full benefit of shore power and on-the-water charging. Designed to provide more time on the water enjoying what you like most... boating.

Intelligent Alternator Power Distribution System

ProMar Digital Performance Zero Volt Loss Isolation and Charging
All digital design delivers active battery status and automatic engine battery health priority while digitally distributing the full output of your engine's alternators.

Intelligent Isolation and Charging Software Control
ProIsoCharge's intelligent software control provides priority charging to a battery bank that's under load (i.e. house bank or power inverter bank) by taking fully charged batteries offline and priority charging discharged battery banks while ensuring the health of the engine batteries.

Real-Time LED Status Indicators
Highly visible LEDs to indicate alternator power is present and battery bank charging status. Fault LEDs include high and low alternator output, over-voltage protection, and high voltage conditions that may be present on any one of the battery banks connected (that are also connected to other charging sources gen set combi, etc).

Ignition Controlled
Distributed On Demand battery bank management will only activate with ignition power on.

Advance Regulator Ready
Advanced regulator remote sense connection provided for precision alternator algorithm control for alternators equipped with an advanced regulator.

Easy Installation
Modular design for easy installation. Includes all terminal stud insulator boots and protective snap-on safety cover.

Built-in Safety
Ignition-protected and waterproof to IP66. FIVE YEAR
