Raymarine RAYE7053205102 7HV HV100 Transom Transducer Lighthouse North America Chart
Raymarine RAYE7053205102 7HV HV100 Transom Transducer Lighthouse North America Chart

Raymarine RAYE7053205102 7HV HV100 Transom Transducer Lighthouse North America Chart

Manufacturer: Raymarine
MPN: RAYE7053205102
Availability: Out Of Stock
$734.94
$749.99
$734.94
Subtotal: $734.94
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Raymarine RAYE7053205102 7HV HV100 Transom Transducer Lighthouse North America Chart

Raymarine

Raymarine RAYE7053205102 7HV HV100 Transom Transducer Lighthouse North America Chart

$734.94
Raymarine RAYE7053205102 7HV HV100 Transom Transducer Lighthouse North America Chart

Raymarine

Raymarine RAYE7053205102 7HV HV100 Transom Transducer Lighthouse North America Chart

$734.94
Description
Description
x

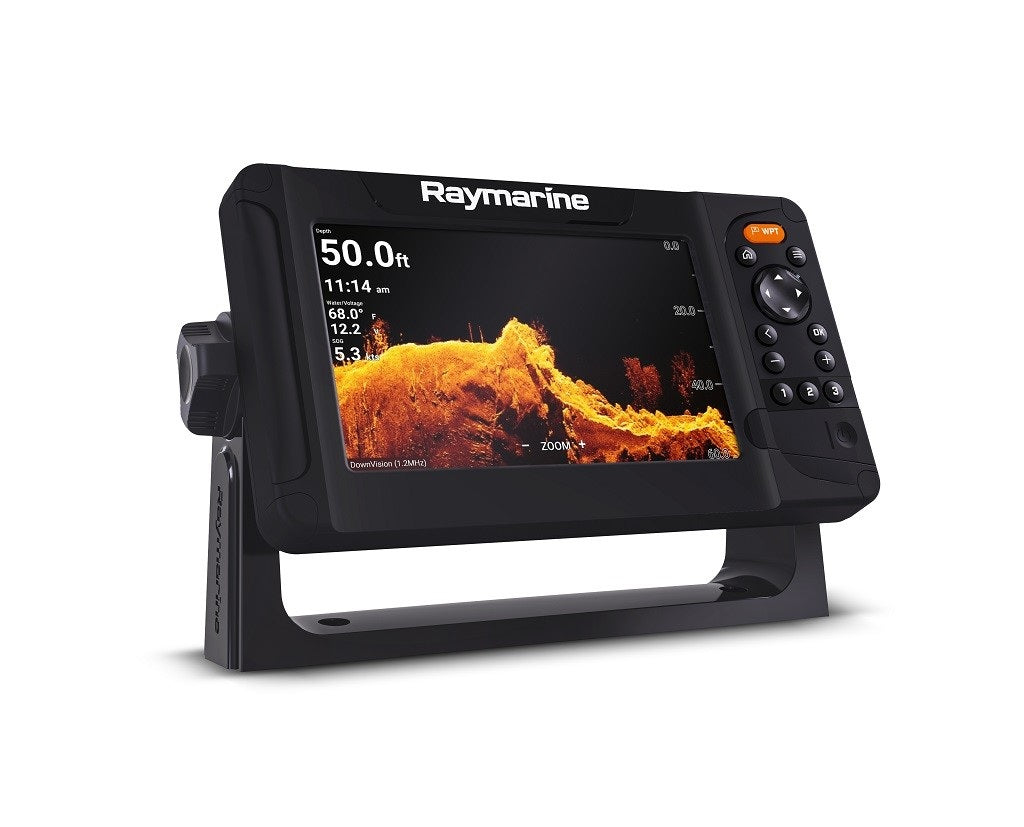

Raymarine Element 7 HV Combo w/HV-100 Transducer LNC3 Chart w/Fishing Hot Spots

Model: E70532-05-102
  • High-visibility sunlight viewable 7" display
  • Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
  • Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
  • Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
  • 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
  • Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
  • Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
  • Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
  • User-programmable keys allow quick access to most-used configurations
  • Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
  • Supports Navionics, C-MAP and other regional charting options
  • NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm. An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.

Specifications
GENERAL SPECIFICATIONS
Display Size 7.0" Optically Bonded LCD
Display Resolution 1280 x 800 WXGA
Display Type Non-Touch
Brightness 1,500 nits
Viewing Angle Top 50° / Bottom 60° / Left 70° / Right 70°
PHYSICAL
Overall Dimensions 240 x 135 62mm
W x H x D (9.5 x 5.3 x 2.4 inches)
Product Weight (lbs) 3.0
Water Ingress Protection IPx6 and IPx7
Operating Temperature Range -25°C to + 55°C (-13°F to 131°F)
Storage temperature range -30°C to +70°C (-22°F to 158°F)
POWER
Voltage 12V DC (8V to 16V DC)
Power Consumption (max 12V DC) 15 Watts
SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS- 10Hz
Sonar Type (Built-in) Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
Sonar Connection 15 pin HyperVision™ type connector
NETWORKING
Ethernet N/A
NMEA0183 N/A
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
SeaTalkng Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB N/A
Wi-Fi WiFi - 802.11 b / g / n
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5
OTHER SPECIFICATIONS
Cartography Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Internal Memory 8GB Solid State
External Memory 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

What's in the Box:
  • Trunnion bracket with mounting hardware
  • Flush mount kit with mounting hardware
  • Sun cover
  • Power / NMEA2000 1.5m cable
  • Documentation pack
  • LightHouse NC3 United States Chart with Fishing Hot Spots
  • HV-100 Transucer with 6m cable
  • Transom bracket with mounting hardware
  • P-clips with mounting hardware (x5)
  • Escutcheon plate with mounting hardware
  • Trunnion bracket with mounting hardware
