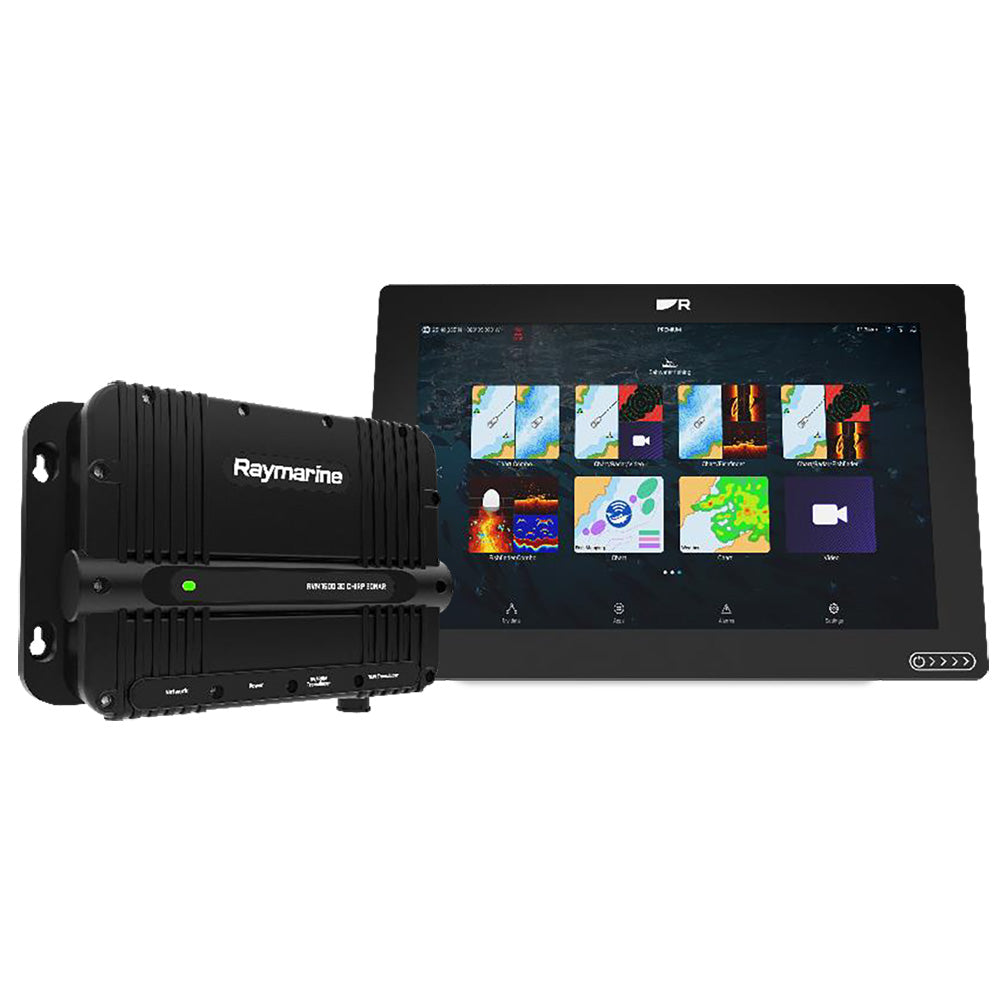

Raymarine T70602 Axiom 2XL 16 w/RVM1600 Sonar Module

Axiom 2XL 16 with RVM1600 Sonar Module

Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.

Features:

• A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
• Get underway faster with a fast 6-core processor
• HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
• Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
• Create your glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
• Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
• Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
• Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
• HDMI output for connecting to remote monitors or HDTVs
• HDMI input and USB touchscreen input for remote PC integration
• Analog audio output for integrating with marine entertainment systems
• Easy to upgrade with the same mounting footprint as Axiom XL
• Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
• Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
• NMEA 2000 port
• Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
• Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage

RVM1600 Sonar Module

The next generation of DownVision, SideVision, 3D, and conventional CHIRP sonar, RealVision MAX, delivers vivid sonar imagery and fish targets like never before. RealVision MAX starts with all-new high-performance RealVision CHIRP transducers, upgraded with larger elements and increased power output for extended-range performance. Next, RealVision MAX signal processing and faster ping rates improve visual fidelity and target identification. With RealVision MAX, the structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.

Features:

• RayNet network compatible with all Axiom displays running LightHouse 4.3 or higher
• Employs the same RealVision MAX sonar technology built into the new Axiom 2 Pro RVM chartplotters
• RealVision MAX sonar processing, combined with faster ping rates, delivers superior fish finding in CHIRP, Side, Down, and RealVision channels.
• RealVision MAX high contrast color palettes provide better visibility of fish and structure.
• The more powerful 600-watt traditional CHIRP frequency of RealVision MAX transducers provides a deeper sonar range, reducing the need for additional transducers.
• RealVision 3D provides accurate target location to help pinpoint that elusive wreck or set up the perfect drift.
• Support for 1kW Airmar CHIRP transducers enables fishing in waters up to 3,000ft (914 meters).

Multi-Channel Fishfinder:

• CHIRP DownVision® delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail.
• CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars.
• RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structure

RealVision MAX Transducers:

RealVision MAX transom mount and through hull transducer provide DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability to the RVM1600.  RealVision MAX transducers feature a built-in attitude and heading reference system (AHRS) for stabilizing 3D sonar imagery and automatically compensating for vessel motion. A fast-response built-in water temperature sensor provides quick and accurate sea temperature readings.
