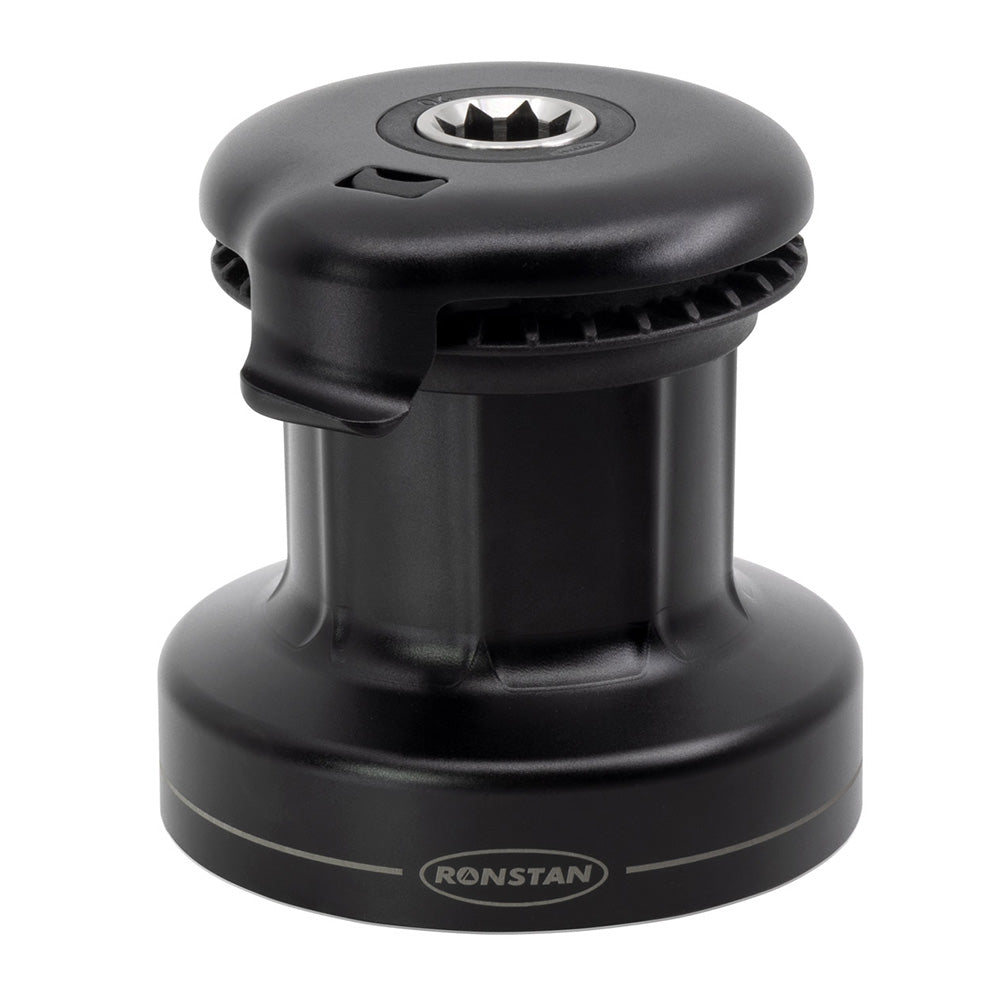

Ronstan RA6201 20ST Orbit Winch 1 Speed

20ST Orbit Winch 1 Speed

Ronstan’s Orbit Winches™ are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches™ weigh significantly less and offer lower line entry heights than any other winch in their class.

Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs™ that many sailors will recognize from Andersen Stainless Steel Winches®, well-known for their impressive line grip, smooth control, and minimal rope wear.

Power Ribs™

The exceptional grip provided by the Power Ribs™ offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.

No Tools Required

Full disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem.

When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.

Features:

• Lightweight machined aluminum drum
• Distinctive Power Ribs™ ensures a controlled grip at all times, whether tensioning or easing
• Proven Andersen winch gearing configuration
• No tools are required for configuration and servicing
• Sprung self-tailing jaws to accept 6-10mm line

Materials:

• Hard anodized aluminum drum and center stem, aluminum self-tailing arm
• Grade 316 stainless steel shaft and pawls
• Grade 2205 stainless steel axle pins
• Aluminum bronze gears
• Glass-filled nylon self tailer
• Self-lubricating acetal bearings

Specifications:

• Weight (kilogram): 1.7kg
• Power Ratio: 18.3:1
• Base Diameter (millimeters): 120mm
• Maximum Pulling Load (kilogram): 550kg
• Drum Diameter (millimeters): 75mm
• Base Diameter (millimeters): 120mm
• Height (millimeters): 124mm
• Line Entry L (millimeters): 42mm
• Line Size (millimeters): 6-10mm
• Gear Ratio 1st Speed: 2.7:1
• Power Ratio 1st Speed: 18.3:1
