Simrad SIM00014997001 Combo With US Coastal Charts and 83/200kHz Transom Mount
Simrad SIM00014997001 Combo With US Coastal Charts and 83/200kHz Transom Mount

Simrad SIM00014997001 Combo With US Coastal Charts and 83/200kHz Transom Mount

Manufacturer: Simrad
MPN: SIM00014997001
Availability: Out Of Stock
$762.78
$729.00
$762.78
Subtotal: $762.78
Free Shipping
This product is eligible for Free Shipping!
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Simrad SIM00014997001 Combo With US Coastal Charts and 83/200kHz Transom Mount

Simrad

Simrad SIM00014997001 Combo With US Coastal Charts and 83/200kHz Transom Mount

$762.78
Simrad SIM00014997001 Combo With US Coastal Charts and 83/200kHz Transom Mount

Simrad

Simrad SIM00014997001 Combo With US Coastal Charts and 83/200kHz Transom Mount

$762.78
Description
Description
x

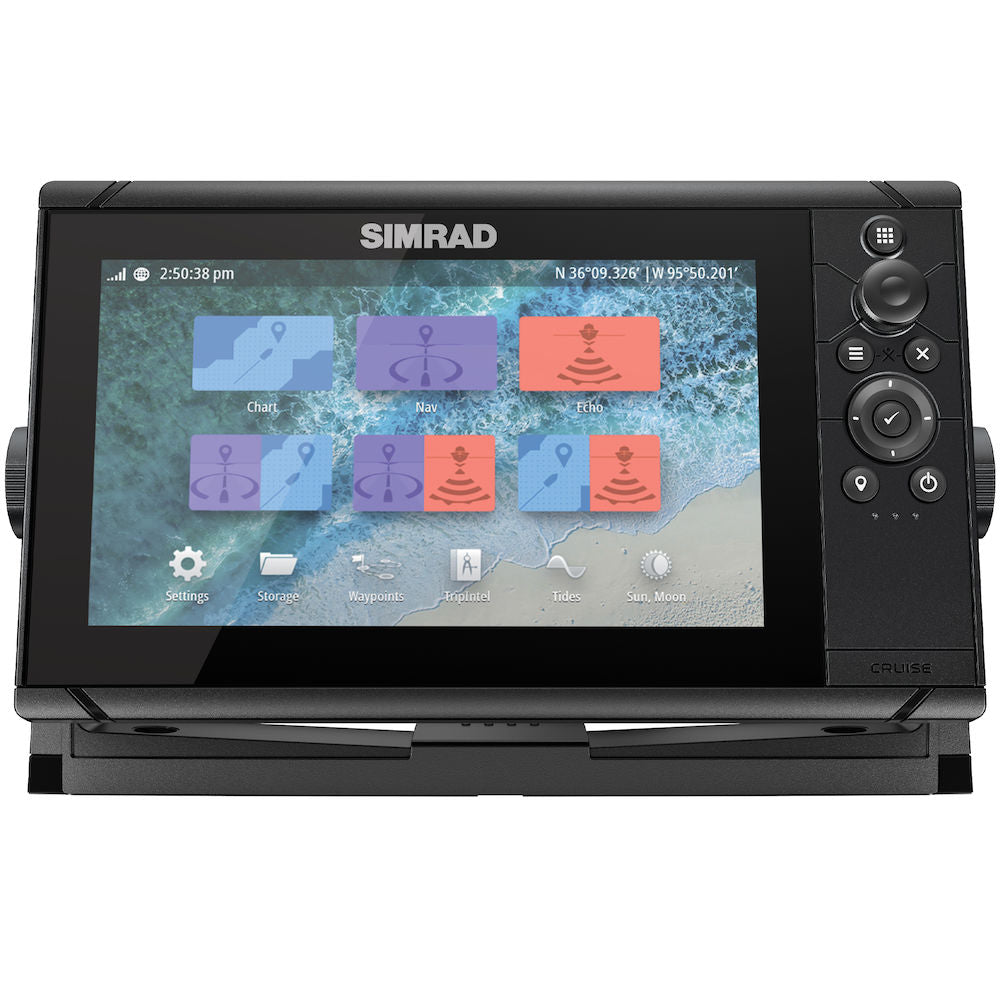

Simrad Cruise 9, US COASTAL, 83/200 XDCR

Model: 000-14997-001
  • Cruise confidently with simple menus plus easy-to-use rotary dial and keypad controls
  • Always know where you are and where you are going with pre-loaded US Coastal map or worldwide basemap, plus C-MAP® and Navionics® upgrade options
  • Keep important data in view with pre-seleced split screens
  • Monitor depth readings, position, battery voltage and other critical boat information
  • CHIRP sonar

The new Simrad Cruise is the most intuitive chartplotter available. Taking ease of use to a new level, Simrad Cruise is a chartplotter first and depth finder second — offering reliable GPS navigation at an affordable price. Free from complicated fishing-specific sonar and networking features, with Simrad Cruise you won’t need to master complex electronics -- simply turn on your display and go.

Pre-loaded with U.S. coastal charts and a worldwide basemap, the sunlight viewable display comes with a mounting bracket and transducer. Installation is easy, requiring only a power and sonar cable — eliminating the hassles of networking multiple modules and pulling miles of cable. The user interface is controlled with a rotary dial and keypad, ensuring smooth navigation through menus and provides the vital information needed for a safe and enjoyable time on the water — speed, depth, GPS location, course, battery level and temperature information. The included CHIRP Sonar transducer provides excellent automatic depth tracking for worry-free operation without the need for fine tuning or pre-programming. Pre-selected display views consist of: chart, sonar, navigation, chart/sonar, chart/navigation and sonar/navigation.

Available in 5-, 7- and 9-inch versions, Simrad Cruise can be dash-mounted or bracket-mounted to fit any boat’s helm station. Take your charts to the next level with a wide selection from C-MAP® and Navionics® for increased level of detail and C-MAP® Easy Routing. The display is ideal for installation in open air vessels such as bay, deck, ski and wakeboard boats, bow riders and tenders.

1

Specifications
Connectivity
NMEA 0183 Sentences supported No
Bluetooth None
Ethernet None
N2K PGNs N/A
NMEA 0183 None
NMEA 2000 None
PC Connectivity None
Video None
WiFi None
Display
Backlight Color White
Resolution 800x480
Screen Brightness 1000 nits
Viewing Angles 70° top/bottom, 70° left/right
Electrical
Power Consumption, max. 19.4 W
Recommended Fuse Rating 3A
Supply Voltage 10 - 17 V DC
Environment
Operating Temperature Range -15°C to +55°C (5° F to 131° F)
Waterproof rating IPX 6 and 7
MFD
AIS N/A
Autopilot N/A
Digital Switching N/A
External Storage 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS
GPS Internal, 10Hz, WASS, MSAS, EGNOS
Multimedia N/A
Radar (inc. compatibility) N/A
Sonar (inc. compatibility) Integrated CHIRP. 9 Pin push fit connector
Weather N/A
Physical
Dimensions (W x H x D) 311 mm x 165.8 x 92.6 mm (12.24" x 6.53" x 3.65") (with bracket)
Mounting Type Bracket or Panel
Other
Warranty Period 2 Years
Interface Directional cursor button and rotary knob

What's in the Box:
  • Cruise 9
  • Power cable
  • 83/200kHz transducer
  • Mounting bracket
  • Mounting knobs
