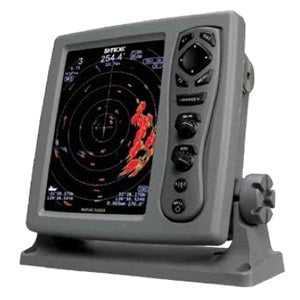

Sitex SITT940A4 8.4" Color Radar With 4Kw 4.5 Foot Open Array

Si-Tex T940A-3 8.4" Display 4kW Open Array Radar with 4.5' Antenna

• True-color radar feature displays echoes in different color depending on signal strength.
• Real-time presentation offers smooth movement as bearing changes
• The T-940 and T-941 have two-speed antenna rotation for tracking of quick moving, close-in targets: 48 RPM and 24 RPM (requires 24V DC input)
• Selectable range scales from 1/16 NM
• Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone.
• Automatic hands-off tuning maintains maximum sensitivity at all times witn manual override for the experiened use.
• RGB output for connecting two optional external monitors.
• Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC.
• Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously. Monitor a nearby buoy and a far off island at the same time.
• All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere.
• True Trail function clearly identifies moving targets from stationary targets. The display shows exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving.
• Accepts CCD camera input, to display split-screen Radar and Camera. Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings.
• Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets. Designate the target and the radar will automatically provide the target distance, speed, bearing, course and closest point of approach on all user targets selected.
• Optional AIS interface, displays information on up to 100 AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitter. This information is sent continuously and is useful in navigating, traffic monitoring and collision prevention.

SI-TEX's T-900 Series Radars feature new sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination. It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets.

Brilliant 8.4" color LCD daylight viewable display with 480 x 640 pixel resolution and anti-reflective glare coating for outstanding viewing.

• MRD-103 Display
• RB716A Pedestal 4kW
• RW701A-04 - 4.5' Antenna
• 242J159098A - 10M Cable
• DC Power Cable
• CCD Camera Cable
• Operation manual
• Quick Reference guide
