Victron BMS400100300 SmallBMS NG
Victron BMS400100300 SmallBMS NG

Victron BMS400100300 SmallBMS NG

Manufacturer: Victron Energy
MPN: BMS400100300
Availability: 18 In Stock
$91.64
$100.00
$91.64
Please hurry! Only 18 left in stock
Subtotal: $91.64
Free Returns
Learn More.
Lead Time
This product Ships In 1-2 Business days
Victron BMS400100300 SmallBMS NG

Victron Energy

Victron BMS400100300 SmallBMS NG

$91.64
Victron BMS400100300 SmallBMS NG

Victron Energy

Victron BMS400100300 SmallBMS NG

$91.64
Description
Description
x

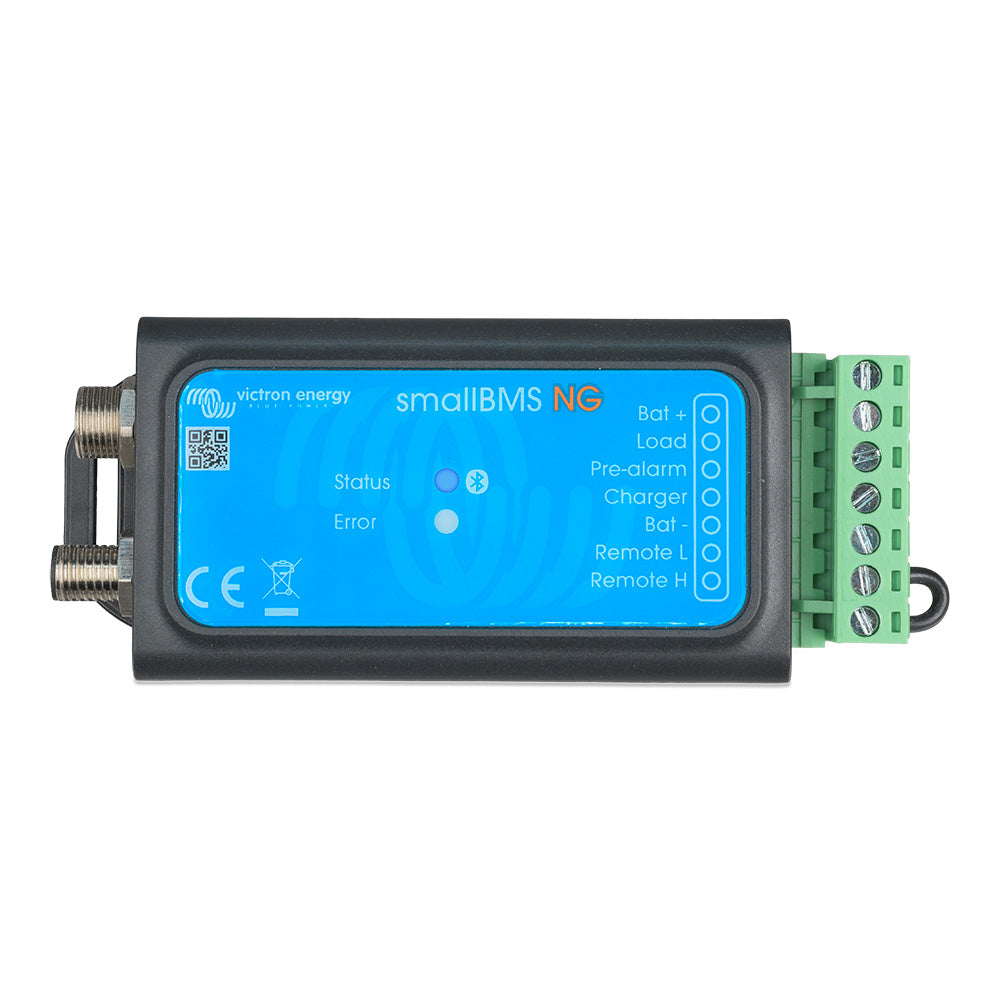

SmallBMS NG

The SmallBMS NG is an all-in-one Battery Management System (BMS) designed for Victron Lithium NG batteries (not compatible with lithium smart batteries). It monitors and protects the batteries by managing charge and load disconnects and providing pre-alarms for low battery voltage.

The SmallBMS NG is a straightforward and cost-effective alternative to the VE.Bus BMS NG for applications that don’t require integration with Victron inverter/chargers. It provides essential lithium battery protection without the added complexity of VE.Bus communication is therefore not suitable for use with VE.Bus inverter/chargers such as MultiPlus and Quattro.

With built-in Bluetooth, it connects directly to all lithium NG batteries in the system for central monitoring via VictronConnect. It also receives current and state of charge data directly from the batteries, so there’s no need for a separate SmartShunt.

The lithium NG batteries can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems. A maximum of 50 batteries can be used in 12V or 24V banks, and 25 batteries in 48V banks, enabling up to 192 kWh (12V), 384 kWh (24V), and 128 kWh (48V) of storage. Multiple Lynx Smart BMS units can be paralleled to expand capacity and ensure redundancy.

Features:

  • Load disconnect output: Controls the remote on/off input of a BatteryProtect, inverter, DC-DC converter, or other loads with remote on/off functionality to prevent deep discharge.
  • Charge disconnect output: Controls the remote on/off port of chargers such as the Smart IP43 Charger, a Cyrix-Li-Charge relay, a Cyrix-Li-ct Battery Combiner, or a BatteryProtect, to prevent overvoltage.
  • Pre-alarm output: Provides early warning for low battery voltage before disconnecting loads. Can drive a relay, LED, or buzzer.
  • Remote on/off control: Allows external control of both load and charge disconnect outputs.
  • LED indicators: Includes a blue LED for Bluetooth status and a red LED for warnings and errors.
Please contact your dealer for any returns, repairs or support issues related to this product.
